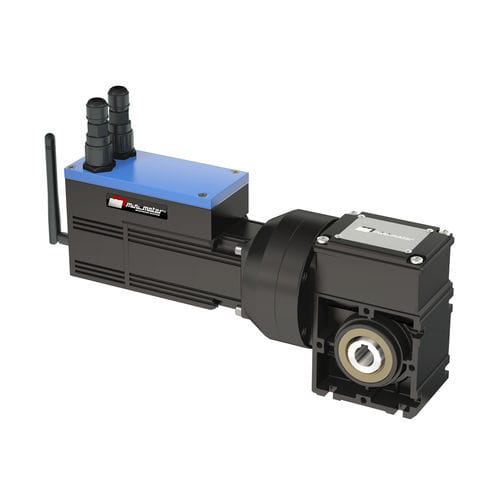

Brushless gear-motor PCWDBS-S3servomotorwormright angle
Add to favorites
Compare this product
Characteristics
- Motor type
- brushless, servomotor
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Power
- 100 W...500 W
- Voltage
- 24 V, 48 V
- Torque
- 1 - 5 Nm
- Certifications
- CE
- Other characteristics
- IP65, with integrated controller, with wireless fieldbus
- Gear ratio
Min.: 5 unit
Max.: 100 unit
- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 60 °C
(140 °F)- Rotational speed
600 rpm
(3,769.9112 rad.min-1)
Description
BRUSHLESS WORM SERVOGEARMOTOR WITH INTEGRATED DRIVE AND WIRELESS FIELDBUS
– 4-pole sinusoidal brushless servomotor
– Rotor with NdFeB magnets and reduced clearance bearings
– 24/48 Vdc supply voltage
– Thermal safety cutout, class F winding
– IP65 protection (CEI EN 60529)
– Feedback with multi-turn absolute encoder
– Gearbox case in die-cast aluminium
– CARO bronze ring (120÷160 HB), hardened steel screw with ground thread
– Lubrication with long-life oil, sealing rings for high temperatures
– Wheelbase 32 mm
