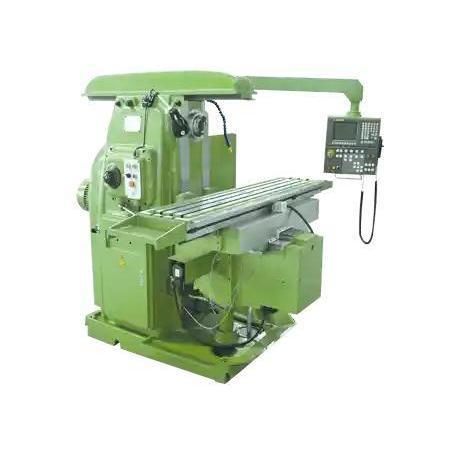

4-axis CNC milling machine XK6032

universalrotating tablewith rotary tilting table

Overview
The XK6032 Series CNC Universal Milling Machine is designed for flexible multi-surface machining with integrated vertical and horizontal modes. Fitted with a CNC rotary table offering 360° automatic indexing at ±0.001° accuracy, the machine supports full four-axis simultaneous machining for angled, cylindrical and complex prismatic parts. It reduces setups and improves process repeatability for batch production and prototyping.

Key Features

• Large worktable: 1325×320 mm table with 300 kg load capacity for secure clamping of long or heavy components.
• Travel range: X 700 mm, Y 300 mm, Z 350 mm to accommodate varied part sizes and geometries.
• CNC rotary table: 360° automatic indexing and ±0.001° positioning for four-axis and indexed operations.
• Multi-mode machining: Vertical and horizontal milling, drilling and boring in a single setup.
• Rigid construction: Stiff frame and advanced CNC control for stable motion and consistent tolerances under load.

Recommended Configurations

• Spindle: Variable-speed spindle (recommended) to match cutting conditions.
• Worktable options: T-slot table, ±45° rotating table, coordinate system and rotary table integration.
• Feed: Manual feed with electric feed adjustment option for precise positioning.
• Cooling & lubrication: Coolant spray device and automatic centralized oil lubrication system.
• Clamping: Standard fixtures with quick-change fixture device for reduced setup time.
• Guideways: Rolling or sliding precision guideways depending on dynamic stiffness requirements.
• Safety & accessories: High-speed rotating tool turret (45°), digital readout (DRO), dividing head, protective covers, emergency stop, safety lock, LED work lamp, cutting disc.

Application Case

• Client: Machinery parts manufacturer (South Korea).
• Workpiece: Transmission flanges and gear housings machined from bar stock.
• Setup: XK6032 equipped with CNC rotary table and DRO system.
• Results: Machining tolerances maintained within ±0.015 mm across multi-angled surfaces; part changeover time reduced by ~40% using four-axis programs; improved surface finish consistency and lower manual intervention.
• Client feedback: “The XK6032 streamlined our flange machining workflow and increased throughput without sacrificing precision.”

Technical specifications

• Table size: 1325×320 mm
• Table load capacity: 300 kg
• X/Y/Z travel: 700 / 300 / 350 mm
• Rotary table: 360° automatic indexing, ±0.001° indexing accuracy
• Machining capability: Full four-axis simultaneous machining (vertical & horizontal modes)
• Spindle: Variable-speed spindle (recommended)
• Worktable details: T-slot table; ±45° rotating table option; rotary table and coordinate system support
• Feed: Manual feed with electric feed adjustment option
• Cooling & lubrication: Coolant spray device; automatic centralized oil lubrication
• Clamping: Standard fixtures and quick-change fixture device
• Guideways: Rolling or sliding precision guideways
• Safety & protection: Protective covers, emergency stop, safety lock, LED work lamp, digital readout (DRO), dividing head
