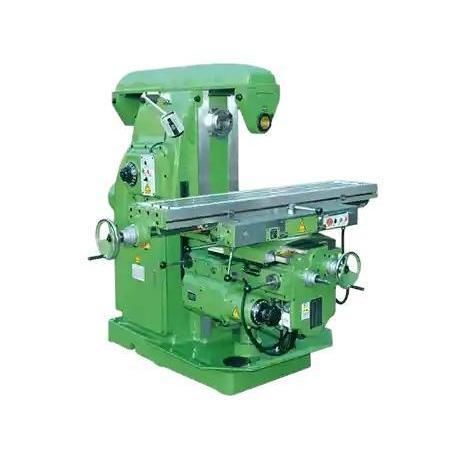

Vertical milling machine X6132BH

universalhorizontalrotating table

Product Overview
The X6132BH manual universal horizontal milling machine is a knee-type unit featuring a universal milling head for both vertical and horizontal operations. Hand-scraped contact surfaces, heat-treated guideways and a rigid indexing rotary table provide stability and positioning accuracy for multi-surface machining. A hardened gear drive delivers consistent power for heavy cuts while an optional ball-screw upgrade improves axis smoothness and repeatability.

Main Features

• Dual-mode milling: universal head supports vertical and horizontal machining without reclamping.
• Precision rotary table: rigid indexing rotary table for accurate multi-angle positioning.
• Hardened guideways with hand scraping: heat-treated, hand-scraped axes and table rails for smooth, wear-resistant motion.
• Heavy-duty gear drive: hardened gears reduce backlash and ensure steady cutting torque for heavy-duty machining.
• Optional ball screw upgrade: available to increase positioning repeatability and axis smoothness.

Recommended Configurations

• Spindle system: adjustable-speed spindle; ISO50 horizontal spindle variants possible.
• Worktable: T-slot worktable; ±45° rotating worktable option; coordinate system and rotary table for multi-face machining.
• Feed system: standard manual feed with optional electric feed adjustment.
• Cooling & lubrication: coolant spray device and automatic centralized oil lubrication options.
• Clamping: T-slots with standard fixtures; optional quick-change fixture devices.
• Guideways: choice of rolling or sliding guideways depending on configuration and precision requirements.
• Safety & accessories: digital readout (DRO), dividing head, protective covers, emergency stop and safety lock, LED work lamp, high-speed tool turret options.

Application Case (example)

• Client: general fabrication shop (example case).
• Workpiece: pump bracket assemblies.
• Setup: X6132 configured with DRO, rotary table and horizontal spindle attachment.
• Results: fixture change time reduced by ~40% using dual-mode milling; repeatable slotting precision within ±0.025 mm; smooth full-depth passes with hardened gear drive.

Notes & Additional Mentions Found on Page

• Multiple table and travel values appear on the page — these correspond to different sub-models or presentations; verify the selected configuration.
• Catalog (PDF) is available for download in the documents section of the product page.

Technical specifications

• Model designation: X6132 Series / X6132BH.
• Table size (reference): 320×1600 mm (alternative listing: 1325×320 mm depending on presentation).
• Max longitudinal travel: 900 mm (manual) / 880 mm (automatic) — page model details list.
• Max cross travel: 255 mm (manual) / 240 mm (automatic) — page model details list.
• Structure: knee-type construction with universal milling head supporting vertical and horizontal machining.
• Surface treatment: hand-scraped contact surfaces; heat-treated guideways.
• Rotary table: high-rigidity indexing rotary table; ±45° rotating worktable option.
• Drive: hardened gear drive; optional ball-screw upgrade for axes.
• Feed: manual feed standard; electric feed optional.
• Cooling & lubrication: coolant spray device; automatic centralized oil lubrication available.
• Clamping: T-slots; standard fixtures; optional quick-change fixtures.
• Accessories & safety: DRO, dividing head, protective covers, emergency stop, safety lock, LED lamp, tool turret options.
