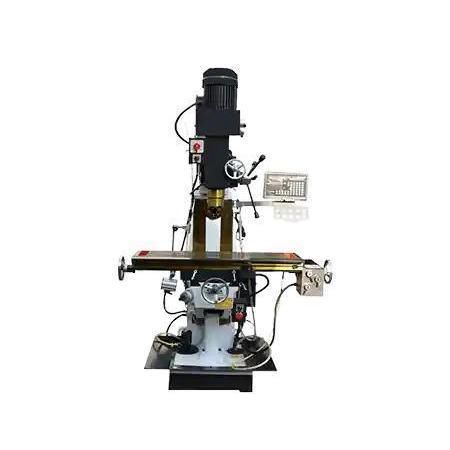

Vertical drilling and milling machine ZX7550CW

for steelfor metal plateshigh precision

Product description
The ZX7550CW is a compact vertical drilling and milling machine designed for multipurpose machining in industrial and educational environments. It integrates drilling, milling, boring, grinding and tapping in a single unit, suitable for small-batch production, tool repair and prototyping.

General information

• Table size: 1000×240 mm
• Max end milling width: 100 mm
• Max bore diameter: 50 mm

Key features

• Five integrated functions: drilling, milling, boring, grinding, tapping
• Vertical spindle head rotates 90° for angular machining
• Compact footprint for workshops, training facilities and tool rooms
• Optional automatic feed and digital readout (DRO)
• Cast iron base and hardened guide ways for rigidity and durability

Recommended configurations

• Spindle system: adjustable speed spindle
• Worktable: T-slot table; ±45° tilting table; rotary table or dividing head options
• Feed system: manual feed standard; electric or automatic feed optional
• Cooling and lubrication: coolant spray device; optional centralized oil lubrication
• Clamping: standard fixtures; quick-change fixture option
• Safety and accessories: high-speed tool turret (45°), DRO, protective covers, emergency stop, safety lock, LED work lamp, cutting disc

Application case

• Client: tooling workshop (regional example)
• Workpiece: jigs and steel brackets for machine maintenance
• Setup: ZX7550CW equipped with DRO and automatic feed (example configuration)
• Results: slot milling precision ≤±0.02 mm; operation time reduced by ~35% due to multi-process capability; surface finish Ra ≤1.6 μm on mild steel
• Client feedback: meets the requirements of low-volume, high-variety operations

Technical specifications

• Table: 1000×240 mm (T-slot option)
• Max end milling width: 100 mm
• Max bore diameter: 50 mm
• Combined functions: drilling, milling, boring, grinding, tapping
• Spindle: adjustable speed (configurable)
• Spindle head: vertical, rotates 90° for angular machining
• Worktable options: ±45° tilting; rotary table/dividing head available
• Feed: manual standard; electric/automatic optional
• Cooling: coolant spray device
• Lubrication: optional automatic centralized oil lubrication
• Construction: cast iron base; hardened guide ways
• Clamping: standard fixtures; quick-change option
• Safety: protective covers, emergency stop, safety lock, LED work lamp
• Typical accuracy (example): slot milling ≤±0.02 mm; surface finish Ra ≤1.6 μm (mild steel)
