Engineering software GT Works3

designHMIcreation

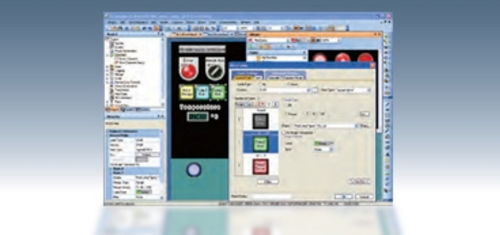

MELSOFT GT Works3 improves screen design efficiency and utilizes existing data. Professional designs can be achieved with just a few clicks. Work Tree The work tree automatically organizes every piece of your project so it's easy to find later. The files are split among three logical categories so you know where to look intuitively. Additionally you can now create new screens or comments directly from the work tree by double clicking "New." Toolbar Hovering over icons with the mouse now provides detailed tool-tips. The user tool bar now remembers the last function used to further increase screen design efficiency. Many icons are now rendered in vibrant color for easy identification. Screen Elements Library The library tree has been reorganized and sorted to help users find the right element more quickly. For example, it is now possible to jump directly to items based on "appearance" or "function." A feature to select items from a recent history list is also included. Dialog Boxes Set-up and operation of the system has been simplified by including easy-to-identify tabs. Tabs which have already been configured are noted with asterisk to show designers that object settings have been modified. Arrange On/Off switches and images by range and check them as you configure them. Simulator Function Verify the correct operation of GOT projects on a PC, without the need for GOT or PLC hardware. Check that the system alarms operate, screen transitions are correct, and monitor devices all using the simulator. (Excluding GT10)
