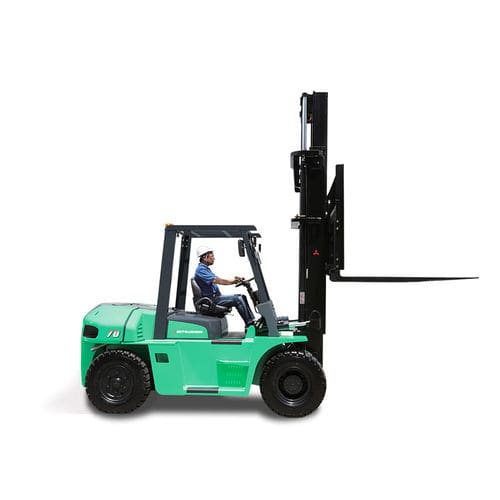

Diesel forklift FD70-100NH Seriesride-onexteriorindustrial
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Operator
- ride-on
- Applications
- handling, industrial, exterior
- Other characteristics
- 4-wheel, counterbalanced, high-performance, heavy-duty, low-noise, increased safety, for harsh environments
- Carrying capacity
7,000 kg, 8,000 kg, 10,000 kg
(15,432.4 lb, 17,637 lb, 22,046.2 lb)- Lifting height
3,000 mm
(118.11 in)- Overall width
1,995 mm, 2,165 mm, 2,245 mm
(78.5 in, 85.2 in, 88.4 in)- Overall length
4,820 mm, 5,160 mm, 5,475 mm
(189.8 in, 203.1 in, 215.6 in)- Load center distance
600 mm
(23.6 in)- Weight without load
9,360 kg, 10,960 kg, 12,300 kg
(20,635.3 lb, 24,162.7 lb, 27,116.9 lb)- Axle loading with maximum load front
14,530 kg, 17,040 kg, 20,100 kg
(32,033.2 lb, 37,566.8 lb, 44,312.9 lb)- Axle loading with maximum load rear
1,830 kg, 1,940 kg, 2,200 kg
(4,034.5 lb, 4,277 lb, 4,850.2 lb)- Axle loading without load front
3,750 kg, 4,820 kg, 5,420 kg
(8,267.3 lb, 10,626.3 lb, 11,949.1 lb)- Axle loading without load rear
5,610 kg, 6,160 kg, 6,880 kg
(12,367.9 lb, 13,580.5 lb, 15,167.8 lb)- Track width front
1,470 mm, 1,600 mm
(57.9 in, 63 in)- Track width rear
1,700 mm
(66.9 in)- Height of mast when lowered
2,500 mm, 2,700 mm, 2,850 mm
(98.4 in, 106.3 in, 112.2 in)- Free lift
205 mm, 215 mm
(8.1 in, 8.5 in)- Overall height with mast raised
4,330 mm, 4,420 mm
(170.5 in, 174 in)- Height to top of overhead guard
2,450 mm, 2,560 mm
(96.5 in, 100.8 in)- Seat height
1,310 mm, 1,415 mm
(51.6 in, 55.7 in)- Tow couplig height
430 mm, 515 mm
(16.9 in, 20.3 in)- Length to fork face
3,600 mm, 3,940 mm, 4,255 mm
(141.7 in, 155.1 in, 167.5 in)- Fork carriage width
1,710 mm, 1,810 mm, 2,210 mm
(67.3 in, 71.3 in, 87 in)- Ground clearance under mast with load
190 mm, 245 mm
(7.5 in, 9.6 in)- Ground clearance at center of wheelbase with load
225 mm, 320 mm
(8.9 in, 12.6 in)- Turning circle radius
3,360 mm, 3,650 mm, 3,900 mm
(132.3 in, 143.7 in, 153.5 in)- Travel speed
24 km/h, 25 km/h, 26 km/h, 30 km/h
(14.9 mph, 15.5 mph, 16.2 mph, 18.6 mph)- Lifting speed
Max.: 0.55 m/s
(1.804 ft/s)Min.: 0.39 m/s
(1.28 ft/s)- Lowering speed
Max.: 0.5 m/s
(1.64 ft/s)Min.: 0.34 m/s
(1.115 ft/s)- Rated drawbar pull
Max.: 57,300 N
Min.: 21,600 N
- Gradeability
19 %, 20 %, 22 %, 27 %, 29 %
- Rated output
82.4 kW, 84.6 kW
(112 hp, 115 hp)- Rated speed
2,000 rpm, 2,100 rpm
(12,566.4 rad.min-1, 13,194.7 rad.min-1)- Cubic capacity
6,494 cm³
(219.6 US fl oz)- Maximum operating pressure
200 bar
(2,900.8 psi)- Noise level
85 dB
Description
Built for even the most challenging environments, this series of 7–10 tonne heavy-duty diesel counterbalance trucks deal with tough situations with the reliability you expect from Mitsubishi Forklift Trucks.
Class-leading travel speeds of around 30 km/h are possible thanks to a four-cylinder 3.8 L Common Rail Diesel engine. Sitting at the heart of the range, it delivers up to 81 kW (113 HP) of power for high productivity.
The range has market-leading views of the load and forktips, with exceptional all-round visibility thanks to a ClearView mast and low counterweight design. These all help operators to work easier and safer.
Despite its size, the range is precise and agile and offers effortless performance and responsive ergonomic controls, reducing fatigue throughout long shifts.
Exceptional all-round visibility.
Designed with a ClearView mast with market-leading fork tip visibility and a low counterweight for safer operations
Class-leading travel speeds.
Powerful six-cylinder engine allows for speeds up to 30 km/h
Spacious operator compartment
Built to accommodate a wide range of operator sizes, the cabin is comfortable, ergonomic and highly optimised
Integrated Presence System (IPS)
A wide range of features including parking brake alarm and warning light work together to make the FD70-100NH safer to operate
Low-noise design
At 86 dBA, this is among the lowest in its class and helps keep the operator comfortable during shifts
