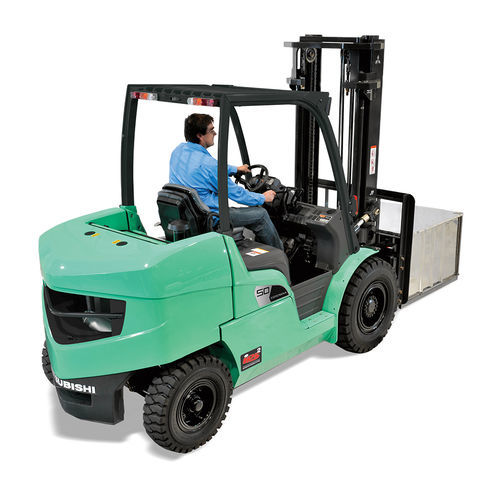

Diesel forklift FD40-55(C)N3 series
ride-onindustrialhandling

diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Operator
ride-on
Applications
handling, industrial
Other characteristics
4-wheel, counterbalanced
Carrying capacity

4,000 kg, 4,500 kg, 5,000 kg, 5,500 kg
(8,818.5 lb, 9,920.8 lb, 11,023.1 lb, 12,125.4 lb)

Lifting height

3,300 mm
(129.92 in)

Overall width

Max.: 1,780 mm
(70.1 in)

Min.: 1,415 mm
(55.7 in)

Overall length

4,220 mm, 4,350 mm, 4,390 mm, 4,530 mm, 4,580 mm
(166.1 in, 171.3 in, 172.8 in, 178.3 in, 180.3 in)

Load center distance

500 mm, 600 mm
(19.7 in, 23.6 in)

Weight without load

5,920 kg, 6,330 kg, 6,850 kg, 7,300 kg, 7,640 kg
(13,051.4 lb, 13,955.3 lb, 15,101.7 lb, 16,093.7 lb, 16,843.3 lb)

Axle loading with maximum load front

8,960 kg, 9,710 kg, 10,600 kg, 11,020 kg, 11,740 kg
(19,753.4 lb, 21,406.9 lb, 23,369 lb, 24,294.9 lb, 25,882.3 lb)

Axle loading with maximum load rear

960 kg, 1,130 kg, 1,250 kg, 1,280 kg, 1,400 kg
(2,116.4 lb, 2,491.2 lb, 2,755.8 lb, 2,821.9 lb, 3,086.5 lb)

Axle loading without load front

2,630 kg, 2,780 kg, 2,900 kg, 3,170 kg, 3,220 kg
(5,798.2 lb, 6,128.9 lb, 6,393.4 lb, 6,988.7 lb, 7,098.9 lb)

Axle loading without load rear

3,290 kg, 3,550 kg, 3,950 kg, 4,080 kg, 4,470 kg
(7,253.2 lb, 7,826.4 lb, 8,708.3 lb, 8,994.9 lb, 9,854.7 lb)

Track width front

1,175 mm
(46.3 in)

Track width rear

1,180 mm
(46.5 in)

Height of mast when lowered

2,320 mm, 2,400 mm
(91.3 in, 94.5 in)

Free lift

150 mm, 160 mm
(5.9 in, 6.3 in)

Overall height with mast raised

4,430 mm, 4,580 mm
(174.4 in, 180.3 in)

Height to top of overhead guard

2,295 mm
(90.4 in)

Seat height

1,082 mm
(42.6 in)

Tow couplig height

395 mm
(15.6 in)

Length to fork face

3,000 mm, 3,130 mm, 3,170 mm, 3,310 mm, 3,360 mm
(118.1 in, 123.2 in, 124.8 in, 130.3 in, 132.3 in)

Fork carriage width

1,190 mm
(46.9 in)

Ground clearance under mast with load

150 mm
(5.9 in)

Ground clearance at center of wheelbase with load

227 mm
(8.9 in)

Turning circle radius

2,580 mm, 2,730 mm, 2,760 mm, 2,890 mm, 2,940 mm
(101.6 in, 107.5 in, 108.7 in, 113.8 in, 115.7 in)

Minimum distance between centres of rotation

836 mm, 903 mm, 971 mm
(32.9 in, 35.6 in, 38.2 in)

Travel speed

20.5 km/h, 21 km/h, 21.5 km/h, 22 km/h, 22.5 km/h
(12.7 mph, 13 mph, 13.4 mph, 13.7 mph, 14 mph)

Lifting speed

0.5 m/s, 0.6 m/s, 0.7 m/s
(1.64 ft/s, 1.969 ft/s, 2.297 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Rated drawbar pull

Max.: 25,500 N

Min.: 18,200 N

Gradeability

Max.: 26.7 %

Min.: 19.3 %

Rated output

54 kW
(73.4 hp)

Rated speed

1,800 rpm
(11,309.7 rad.min-1)

Cubic capacity

3,330 cm³
(112.6 US fl oz)

Maximum operating pressure

191 bar
(2,770.2 psi)

Oil flow

80 l/min
(21.1 us gal/min)

Noise level

78.5 dB

Description

Built to work as hard as you do, GRENDiA EX promises reliable, class-leading performance - whatever the challenges. Tried and tested in the toughest applications, this no-nonsense design builds on the successes of its predecessors - delivering optimal performance. GRENDiA EX's sophisticated Euro Stage V compliant engines, coupled with its long-life design, keeps GRENDiA's running costs and maintenance demands low - for maximum efficiency and productivity. Green inside and out, GRENDiA EX keeps noise and exhaust emissions to a minimum, while delivering improved overall economy. Integrated Presence System (IPS2) Increases safety by isolating hydraulic and drive functions when operator not present for 2 seconds or longer. PIN-access as standard prevents misuse by unauthorised operators. Sealed chassis with full belly guard and inner wheel covers Complete sealing of underside reduces risk of damage from foreign objects, such as shrinkwrap, entering engine compartment. It also reduces noise and eliminates safety issues caused by airborne dust particles. Sophisticated Euro Emissions stage V compliant diesel engine This modern, industrial design is tuned to provide maximum torque at low RPM. It uses power, not revs, to deliver low noise and low fuel consumption with the highest possible performance. Automatic Diesel Particulate Filter This low-maintenance DPF ensures optimal cleanliness and emits even less CO than required under stage V. Our unique run-time DPF requires no driver intervention to cleanse the filter.
