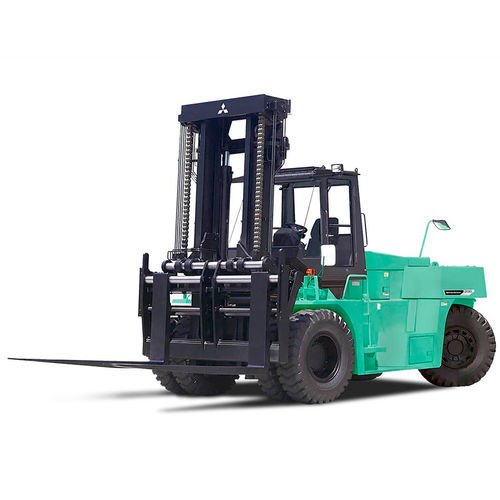

Diesel forklift FD180-230NE Series
ride-onexteriorindustrial

Diesel forklift - FD180-230NE Series - Mïtsubishi Forklift Trucks - ride-on / exterior / industrial
Diesel forklift - FD180-230NE Series - Mïtsubishi Forklift Trucks - ride-on / exterior / industrial
Diesel forklift - FD180-230NE Series - Mïtsubishi Forklift Trucks - ride-on / exterior / industrial - image - 2
Diesel forklift - FD180-230NE Series - Mïtsubishi Forklift Trucks - ride-on / exterior / industrial - image - 3
Diesel forklift - FD180-230NE Series - Mïtsubishi Forklift Trucks - ride-on / exterior / industrial - image - 4
Diesel forklift - FD180-230NE Series - Mïtsubishi Forklift Trucks - ride-on / exterior / industrial - image - 5
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Operator
ride-on
Applications
handling, industrial, exterior
Other characteristics
4-wheel, counterbalanced, high-performance, for heavy loads, increased safety
Carrying capacity

18,000 kg, 20,000 kg, 23,000 kg
(39,683.2 lb, 44,092.5 lb, 50,706.3 lb)

Lifting height

3,000 mm
(118.11 in)

Overall width

2,990 mm, 3,060 mm
(117.7 in, 120.5 in)

Overall length

7,205 mm, 7,990 mm
(283.7 in, 314.6 in)

Load center distance

900 mm
(35.4 in)

Weight without load

25,040 kg, 27,260 kg, 30,760 kg
(55,203.8 lb, 60,098 lb, 67,814.2 lb)

Axle loading with maximum load front

38,770 kg, 42,580 kg, 48,330 kg
(85,473.2 lb, 93,872.8 lb, 106,549.4 lb)

Axle loading with maximum load rear

4,270 kg, 4,680 kg, 5,430 kg
(9,413.7 lb, 10,317.6 lb, 11,971.1 lb)

Axle loading without load front

11,770 kg, 12,580 kg, 13,710 kg
(25,948.4 lb, 27,734.2 lb, 30,225.4 lb)

Axle loading without load rear

13,270 kg, 14,680 kg, 17,050 kg
(29,255.3 lb, 32,363.9 lb, 37,588.8 lb)

Track width front

2,185 mm, 2,195 mm
(86 in, 86.4 in)

Track width rear

2,300 mm, 2,340 mm
(90.6 in, 92.1 in)

Height of mast when lowered

3,545 mm, 3,575 mm, 3,580 mm
(139.6 in, 140.7 in, 140.9 in)

Overall height with mast raised

5,040 mm, 5,070 mm, 5,080 mm
(198.4 in, 199.6 in, 200 in)

Height to top of overhead guard

3,230 mm, 3,260 mm
(127.2 in, 128.3 in)

Seat height

2,180 mm, 2,210 mm
(85.8 in, 87 in)

Tow couplig height

760 mm, 790 mm
(29.9 in, 31.1 in)

Length to fork face

5,365 mm, 5,545 mm
(211.2 in, 218.3 in)

Fork carriage width

2,750 mm
(108.3 in)

Ground clearance under mast with load

270 mm, 290 mm, 300 mm
(10.6 in, 11.4 in, 11.8 in)

Ground clearance at center of wheelbase with load

325 mm, 355 mm
(12.8 in, 14 in)

Turning circle radius

5,000 mm, 5,150 mm, 5,350 mm
(196.9 in, 202.8 in, 210.6 in)

Travel speed

32 km/h, 34 km/h
(19.9 mph, 21.1 mph)

Lifting speed

Min.: 0.24 m/s
(0.787 ft/s)

Max.: 0.31 m/s
(1.017 ft/s)

Lowering speed

0.4 m/s, 0.6 m/s
(1.312 ft/s, 1.969 ft/s)

Gradeability

Min.: 15.2 %

Max.: 25 %

Rated output

125 kW
(170 hp)

Rated speed

2,200 rpm
(13,823 rad.min-1)

Cubic capacity

6,494 cm³
(219.6 US fl oz)

Maximum operating pressure

206 bar
(2,987.8 psi)

Oil flow

260 l/min
(68.7 us gal/min)

Description

Built to deliver exceptional lifting power and legendary reliability, the FD180-230NE Series is built around a powerful industrial engine for non-stop productivity. Its highly intuitive controls, ergonomic cabin, and outstanding visibility makes it a favourite among operators. Performance can be switched between ECO and POWER to tailor the performance between increased fuel efficiency and higher acceleration. With three different transmission speeds, operators can easily control top speed variations as the situation demands, from high transmission speed for long-distance travel, to low transmission speed for high-torque applications. Low-noise design The truck features rubber-mounted components, fully insulated steel engine hood, helical gears and enclosed wheel arches for maximum operator comfort. Powerful six-cylinder diesel engine Driven by 6BG1 — one of the most powerful engines in its class, making it one of the fastest and most efficient machines in the industry. Excellent all-round visibility Optimised dash and counterweight design mean clear views of fork tips, load, and surroundings. This helps with confident handling of heavy loads in tough environments. High-efficiency drivetrain 3-speed automatic powershift transmission that converts engine power to torque, for optimal power in different applications. High transmission speed is useful for long-distance travel, while low transmission speed is useful for high-torque applications. Choice of two pre-set operating modes (ECO and POWER) The truck's performance can be tailored for enhanced power or extra energy efficiency.
