- Packaging - Logistics - Handling
- Handling and Lifting
- Diesel forklift
- Mïtsubishi Forklift Trucks

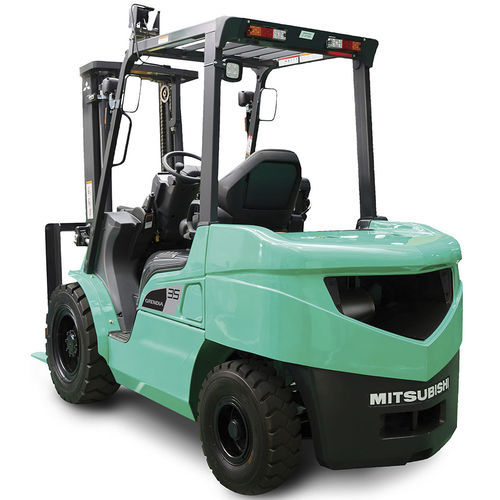

Diesel forklift FD15-35(C)PT Seriesride-onoutdoorindustrial
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Operator
- ride-on
- Applications
- handling, industrial, outdoor
- Other characteristics
- 4-wheel, counterbalanced, high-performance, increased safety
- Carrying capacity
Max.: 3,500 kg
(7,716.2 lb)Min.: 1,500 kg
(3,306.9 lb)- Lifting height
3,000 mm
(118.11 in)- Overall width
Max.: 1,640 mm
(64.6 in)Min.: 1,065 mm
(41.9 in)- Overall length
Max.: 3,860 mm
(152 in)Min.: 3,180 mm
(125.2 in)- Load center distance
500 mm
(19.7 in)- Weight without load
Max.: 4,740 kg
(10,449.9 lb)Min.: 2,530 kg
(5,577.7 lb)- Axle loading with maximum load front
Max.: 7,220 kg
(15,917.4 lb)Min.: 3,520 kg
(7,760.3 lb)- Axle loading with maximum load rear
Max.: 1,020 kg
(2,248.7 lb)Min.: 510 kg
(1,124.4 lb)- Axle loading without load front
Max.: 1,750 kg
(3,858.1 lb)Min.: 1,000 kg
(2,204.6 lb)- Axle loading without load rear
Max.: 3,070 kg
(6,768.2 lb)Min.: 1,470 kg
(3,240.8 lb)- Track width front
890 mm, 960 mm, 1,060 mm
(35 in, 37.8 in, 41.7 in)- Track width rear
900 mm, 980 mm
(35.4 in, 38.6 in)- Height of mast when lowered
1,990 mm, 2,015 mm, 2,130 mm
(78.3 in, 79.3 in, 83.9 in)- Free lift
115 mm, 120 mm, 140 mm, 145 mm
(4.5 in, 4.7 in, 5.5 in, 5.7 in)- Overall height with mast raised
4,055 mm
(159.6 in)- Height to top of overhead guard
2,065 mm, 2,074 mm, 2,093 mm, 2,103 mm
(81.3 in, 81.7 in, 82.4 in, 82.8 in)- Seat height
929 mm, 938 mm, 988 mm
(36.6 in, 36.9 in, 38.9 in)- Tow couplig height
290 mm, 310 mm, 330 mm, 340 mm
(11.4 in, 12.2 in, 13 in, 13.4 in)- Length to fork face
Max.: 2,795 mm
(110 in)Min.: 2,260 mm
(89 in)- Fork carriage width
920 mm, 1,000 mm
(36.2 in, 39.4 in)- Ground clearance under mast with load
110 mm, 115 mm, 135 mm, 150 mm
(4.3 in, 4.5 in, 5.3 in, 5.9 in)- Ground clearance at center of wheelbase with load
150 mm, 160 mm, 190 mm, 200 mm
(5.9 in, 6.3 in, 7.5 in, 7.9 in)- Turning circle radius
Max.: 2,440 mm
(96.1 in)Min.: 1,950 mm
(76.8 in)- Travel speed
Max.: 18.5 km/h
(11.5 mph)Min.: 16.5 km/h
(10.3 mph)- Lifting speed
Max.: 0.68 m/s
(2.231 ft/s)Min.: 0.42 m/s
(1.378 ft/s)- Lowering speed
Max.: 0.52 m/s
(1.706 ft/s)Min.: 0.31 m/s
(1.017 ft/s)- Rated drawbar pull
Max.: 18,000 N
Min.: 11,800 N
- Gradeability
Max.: 62 %
Min.: 21 %
- Rated output
28 kW, 35.3 kW
(38.1 hp, 48 hp)- Rated speed
2,250 rpm, 2,500 rpm
(14,137.2 rad.min-1, 15,708 rad.min-1)- Cubic capacity
2,505 cm³, 3,331 cm³
(84.7 US fl oz, 112.6 US fl oz)- Maximum operating pressure
180 bar
(2,610.7 psi)- Oil flow
62 l/min, 73 l/min, 75 l/min
(16.4 us gal/min, 19.3 us gal/min, 19.8 us gal/min)- Noise level
78 dB, 80 dB
Description
High performance
Low running costs
The latest generation of GRENDiA ES continues to set the very highest standards for IC engine counterbalance trucks. The philosophy behind GRENDiA has always been simple: maximum productivity, minimal running costs, and legendary reliability.
With its exceptional fuel economy, cutting-edge features, durable components and low-maintenance design, GRENDiA ES is the perfect example of this thinking.
To that, Mitsubishi Forklift Trucks has added a host of ergonomic features to maximise comfort, control and precision. The result is a forklift that can be relied upon to deliver top performance, whatever the application, whatever the conditions.
Integrated Presence System (IPS2)
Increases safety by isolating hydraulic and drive functions when operator not present for 2 seconds or longer. PIN-access as standard prevents misuse by unauthorised operators. Includes a parking brake alarm, plus a seatbelt interlock and light.
DuoControl Lever
This patented feature allows for lifting, lowering and tilt to all be performed for the same lever for simple, intuitive control that's easy to operate with heavy gloves.
Full-colour display
On this large, user-friendly interface, operators can select from a light mode or a dark mode, ensuring that they can easily and quickly access important data, even in challenging lighting conditions. As well as a speedometer and warning lights, the multifunctional display also offers dual hour meters and incorporates switches for additional features.
