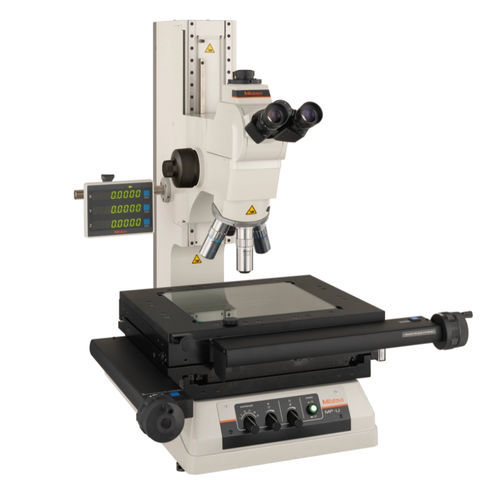

Measuring microscope MF-U

opticalinspectionbinocular

Its infinite corrected optical system allows a wide range of applications (e.g. dark-field-, polarized- and DIC-microscopy) and the use of a turret. The MF-U offers you the following benefits: •Measuring accuracy that is one of the highest in its class. •Proven high-NA objectives from the FS optical system (long working distance type). •Integration of metallurgical and measurement microscope functions enabling you to make high-resolution observations and high-accuracy measurements. •Illumination unit (reflected/transmitted) gives you the option of a high-intensity LED or halogen bulb. •The variable aperture diaphragm (reflected/ transmitted) allows observation measurement while suppressing light diffraction. •Variety of standardized stages in sizes up to 400 × 200 mm. •Quick-release mechanism enabling you to move the stage quickly when measuring large or numerous workpieces. •High-magnification eyepiece observation up to 2000X. •A good choice of optional accessories, including a Vision Unit, various digital cameras or data management on a PC, promises a wide field of application and excellent measuring efficiency.
