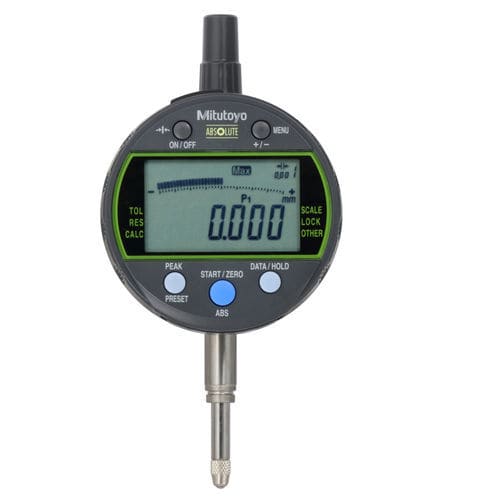

Dial comparator ID-C series

This indicator is the MAX/MIN/RANGE value holding function model It offers the following benefits: • The MAX/MIN/RANGE (run-out value) can be measured. • A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably. • Easy indicator setup via a setup menu. • Analogue bar graph in the display (12 different scales switchable). • GO/±NG tolerance judgement function. • This indicator enables the use of a calculation function for the measured value Ax. • Coefficient A is freely definable and x = displacement of the plunger. • A USB interface box can be used to set up the indicator from PC via dedicated software.
