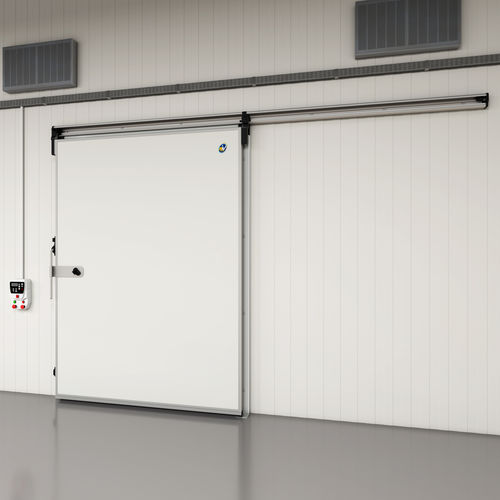

Sliding door 800MI

swingstainless steelaluminum

800MI (T from 0 to +4°C) INDUSTRIAL REFRIGERATOR DOOR FOR POSITIVE TEMPERATURE This industrial door can be applied in large storage, refrigeration and distribution warehouses. Used to separate rooms or to keep a constant temperature. Particularly robust for heavy industrial use, suitable for large dimensions. 90mm Door Leaf Indoor Installation Flat Frame STANDARD CONSTRUCTION - Sliding door for internal aplication in positive temperature rooms Installation on panel or masonry wall 90 mm thick aluminum door leaf Internal and external coating in white plasticoated metalsheet (Stainless steel coating available as optional) Door leaf injected with polyurethane foam “PUR” CFC free 40-42 Kg/cu.mtr density Lower and perimetral EPDM gasket (increased dimension) Door leaf supported by brackets and pulleys (made of technopolymer) with increased diameter wheels and sliding on anodized aluminum guide rail (with rail cover) Lower guide made of stainless steel with floor register (floor mounted) “Heavy Duty” sliding system suitable for large-sized doors Original MIV design internal and external lever handle with special anti-breaking stop Front fixing flat aluminum frame (length 140 mm x thick 45 mm) (Variant: stainless steel/pvc and metal connecting sheet) Without threshold (Variant with floor level doorsill ) OPTIONALS - Automation system Original MIV design lock
