976-977P (T from 0 to +4°C)

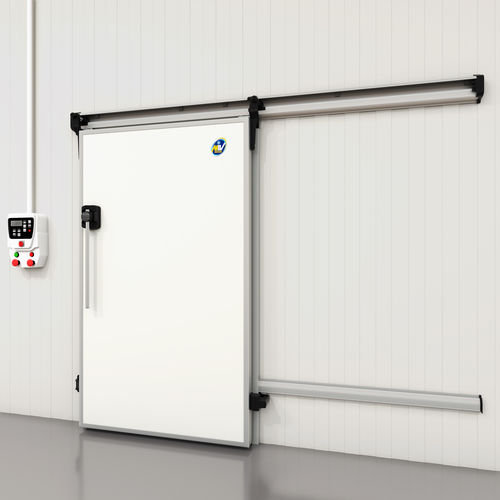

LIGHT SLIDING INDUSTRIAL REFRIGERATOR DOOR FOR POSITIVE TEMPERATURE
This door model can be used in positive temperature cells, for food processing and seasoning (0°C Minimum) Recommended application in fruit and vegetables storage areas, abattoirs, warehouse and supermarkets.
60mm Door Leaf
Indoor Installation
L-shaped embracing frame
STANDARD CONSTRUCTION
Sliding door for internal aplication in positive temperature rooms
Installation on panel or masonry wall
60mm or 70mm thick aluminum door leaf
Internal and external coating in white plasticoated metalsheet (Stainless steel coating available as optional)
Door leaf injected with polyurethane foam “PUR” CFC free 40-42 Kg/cu.mtr density
Lower and perimetral EPDM gasket
Door leaf supported by brackets and pulleys (made of technopolymer) and sliding on anodized aluminum guide rail (with rail cover)
Lower guide made of anodized aluminum with technopolymer floor register (Variant with panel mounted guide)
Sliding system suitable for small and medium-sized doors
Original MIV design internal and external lever handle
“L” shape PVC frame (100mm length and 25mm thick) with additional modules to reach the thickness of the panel. PVC counterframe for wall installation (Variant with aluminum frame and counterframe)
Without threshold (Variant with cold threshold)
Maximum net opening L.160 cm x H.250 cm
OPTIONALS -
Original MIV design lock
