Sliding door 900M

swingstainless steelaluminum

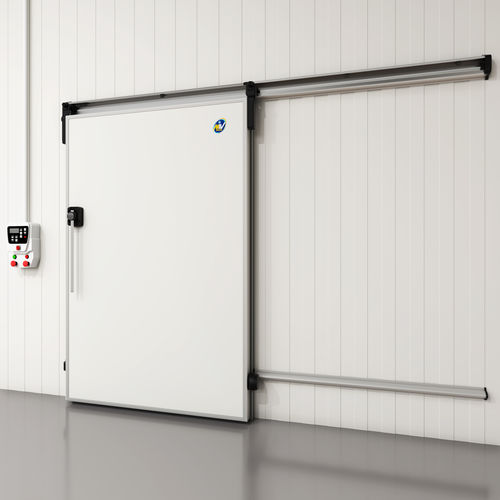

Product description This door model can be used in positive temperature cells, for food processing and seasoning (0°C Minimum) Recommended application in fruit and vegetables storage areas, abattoirs, cold storage areas STANDARD CONSTRUCTION • - Sliding door for internal aplication in positive temperature rooms • - Installation on panel or masonry wall • - 90 mm thick aluminum door leaf • - Internal and external coating in white plasticoated metalsheet (Stainless steel coating available as optional) • - Door leaf injected with polyurethane foam “PUR” CFC free 40-42 Kg/cu.mtr density • - lower and perimetral EPDM gasket • - Door leaf supported by brackets and pulleys (made of technopolymer) sliding on anodized aluminum guide rail (with rail cover) • - Lower guide made of anodized aluminum, panel mounted • - Sliding system suitable for large and medium-sized doors • - Original MIV design internal and external lever handle • - “L” shape PVC frame (140mm length and 45mm thick) with additional modules to reach the thickness of the panel. PVC counterframe for wall installation (Variant with aluminum frame and counterframe) • - Without threshold (Variant with floor level doorsil) • - Maximum net opening L. 250 x H.340 OPTIONALS • - Original MIV design lock • - Automation system
