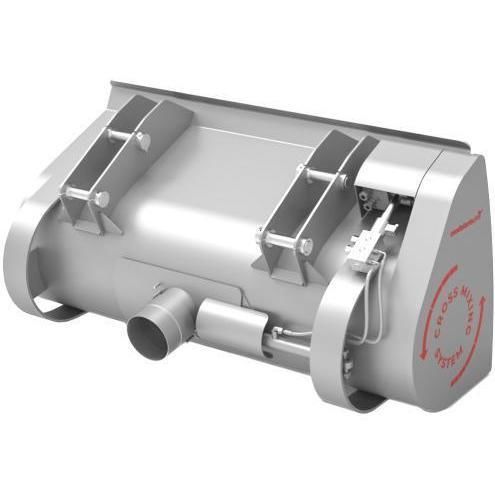

Concrete mixing bucket MMB series

for loaders

Product overview
The Modularis concrete mixing bucket is an attachment for loaders designed for producing concrete, soil mixing with additives, and animal feed mixing in a simple and rational way. It allows transport and handling of concrete (soil, feed, etc.) to restricted or limited-access locations and is suitable for pouring sidewalks, driveways, footings, small building floors, and other limited-access locations.

Mixing technology & materials
Our patented 'Cross Mixing' system (Patent No. 21315) improves mix homogeneity, provides up to 30% faster mixing times, and reduces fuel consumption. Built from durable steels (Hardox, Sidur, Quard) and supplied with a 3-year warranty.

Applications

• Production of concrete on-site
• Soil mixing with additives
• Animal feed mixing
• Pouring sidewalks, driveways, footings and small building floors

Superior Mixing System
The Cross Mixing system ensures improved homogeneity and operational efficiency for stronger, more durable structures.

Available models and capacities
MMB 200/150L

• Machine operating weight: 1.5 - 2.5 t (3,300 - 5,500 lbs)
• Width: 1350 mm / 53.1 in
• Bucket volume: 200 l / 0.26 c.y.
• Mixing capacity: 150 l / 0.20 c.y.
• Bucket weight: 270 kg / 595 lbs
• Bucket + concrete weight: 630 kg / 1,389 lbs
• Required operating pressure: 190 bar / 2,755 psi
• Flow range: 30 - 60 liters per min / 7.9 - 15.84 gallons per min

MMB 300/200L

• Machine operating weight: 3 - 4 t (6,600 - 8,800 lbs)
• Width: 1330 mm / 52.4 in
• Bucket volume: 300 l / 0.39 c.y.
• Mixing capacity: 200 l / 0.26 c.y.
• Bucket weight: 370 kg / 816 lbs
• Bucket + concrete weight: 850 kg / 1,874 lbs
• Required operating pressure: 190 bar / 2,755 psi
• Flow range: 40 - 70 liters per min / 10.65 - 18.48 gallons per min

MMB 350/250L

• Machine operating weight: 3 – 4 t (6,600 – 8,800 lbs)
• Width: 1670 mm / 65.7 in
• Bucket volume: 350 l / 0.46 c.y.
• Mixing capacity: 250 l / 0.33 c.y.
• Bucket weight: 410 kg / 904 lbs
• Bucket + concrete weight: 1,010 kg / 2,227 lbs
• Required operating pressure: 190 bar / 2,755 psi
• Flow range: 40 - 70 liters per min / 10.65 - 18.48 gallons per min

MMB 450/300L

• Machine operating weight: 4 - 5 t (8,800 - 11,000 lbs)
• Width: 1920 mm / 75.6 in
• Bucket volume: 450 l / 0.59 c.y.
• Mixing capacity: 300 l / 0.39 c.y.
• Bucket weight: 450 kg / 992 lbs
• Bucket + concrete weight: 1,170 kg / 2,579 lbs
• Required operating pressure: 190 bar / 2,755 psi
• Flow range: 40 - 70 liters per min / 10.65 - 18.48 gallons per min

MMB 600/450L

• Machine operating weight: 5 - 7 t (11,000 - 15,400 lbs)
• Width: 1920 mm / 75.6 in
• Bucket volume: 600 l / 0.78 c.y.
• Mixing capacity: 450 l / 0.59 c.y.
• Bucket weight: 580 kg / 1,279 lbs
• Bucket + concrete weight: 1,660 kg / 3,660 lbs
• Required operating pressure: 190 bar / 2,755 psi
• Flow range: 50 - 80 liters per min / 13.2 - 21.12 gallons per min

MMB 800/600L

• Machine operating weight: 6 - 9 t (13,200 - 19,800 lbs)
• Width: 1920 mm / 75.6 in
• Bucket volume: 800 l / 1.05 c.y.
• Mixing capacity: 600 l / 0.78 c.y.
• Bucket weight: 750 kg / 1,653 lbs
• Bucket + concrete weight: 2,190 kg / 4,828 lbs
• Required operating pressure: 190 bar / 2,755 psi
• Flow range: 50 - 80 liters per min / 13.2 - 21.12 gallons per min

MMB 900/700L

• Machine operating weight: 7 - 10 t (15,400 - 22,000 lbs)
• Width: 2170 mm / 85.4 in
• Bucket volume: 900 l / 1.18 c.y.
• Mixing capacity: 700 l / 0.92 c.y.
• Bucket weight: 800 kg / 1,764 lbs
• Bucket + concrete weight: 2,480 kg / 5,457 lbs
• Required operating pressure: 190 bar / 2,755 psi
• Flow range: 60 - 100 liters per min / 15.84 - 26.4 gallons per min

MMB 1250/1000L

• Machine operating weight: 8 - 12 t (17,600 - 26,400 lbs)
• Width: 2200 mm / 86.6 in
• Bucket volume: 1250 l / 1.63 c.y.
• Mixing capacity: 1000 l / 1.31 c.y.
• Bucket weight: 1,110 kg / 2,447 lbs
• Bucket + concrete weight: 3,510 kg / 7,738 lbs
• Required operating pressure: 190 bar / 2,755 psi
• Flow range: 70 - 120 liters per min / 18.48 - 31.68 gallons per min

MMB 1800/1500L

• Machine operating weight: 15 - 18 t (33,069 - 39,683 lbs)
• Width: 2230 mm / 87.8 in
• Bucket volume: 1800 l / 2.35 c.y.
• Mixing capacity: 1500 l / 1.96 c.y.
• Bucket weight: 1,350 kg / 2,976 lbs
• Bucket + concrete weight: 4,950 kg / 10,912 lbs
• Required operating pressure: 190 bar / 2,755 psi
• Flow range: 110 - 160 liters per min / 29.06 - 42.27 gallons per min

MMB 2800/2000L

• Machine operating weight: 18 - 23 t (39,683 - 50,706 lbs)
• Width: 2700 mm / 106.3 in
• Bucket volume: 2800 l / 3.53 c.y.
• Mixing capacity: 2000 l / 2.62 c.y.
• Bucket weight: 1,980 kg / 4,365 lbs
• Bucket + concrete weight: 6,780 kg / 14,947 lbs
• Required operating pressure: 190 - 220 bar / 2,755 - 3,190 psi
• Flow range: 120 - 170 liters per min / 31.70 - 44.91 gallons per min

Caractéristiques / spécifications techniques

• Mixing system: Patented Cross Mixing (Patent No. 21315) — improved homogeneity, up to 30% faster mixing, reduced fuel consumption
• Materials: Hardox, Sidur, Quard (high-durability steels)
• Warranty: 3 years
• Primary uses: concrete production, soil mixing with additives, animal feed mixing
• Compatibility: Loader-mounted mixing buckets (series MMB) with model-dependent machine operating weight ranges
• Hydraulic requirements: model-dependent flow ranges and typical required operating pressure of 190 bar (see model specifications)
