Concrete mixing bucket Agro

for tractorsfor agricultural machineryHB400

Product description

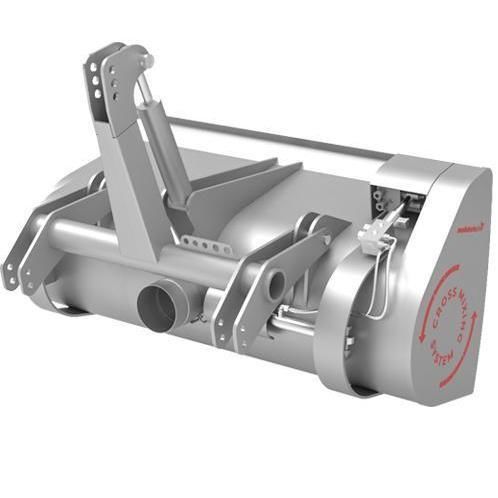

The Modularis Agro concrete mixing bucket is a tractor-mounted 3-point attachment with a tilting mechanism, engineered for on‑site production of concrete, soil blending with additives and mixing of animal feed. It enables transport, mixing and accurate discharge of materials directly where needed, ideal for farm works, small civil works and locations with limited access.

Key features
Patented 'Cross Mixing' system (Patent No. 21315) ensures improved mix homogeneity, up to 30% faster mixing cycles and reduced fuel consumption. Construction uses wear‑resistant steels including Hardox, Sidur and Quard. Designed for daily agricultural and construction use and supplied with a 3‑year warranty.

Superior Mixing System
The bucket integrates a purpose‑designed mixing layout; technical diagrams and component specifications describe the mixer configuration and hydraulic interfaces for tractor compatibility.

Models and specifications

• MMB 450/300A
  Tractor operating power: 50 - 75 HP / 37 - 56 kW
  Width: 1920 mm / 75.6 in
  Bucket volume: 450 l / 0.59 c.y.
  Mixing capacity: 300 l / 0.39 c.y.
  Bucket weight: 570 kg / 1257 lbs
  Bucket + concrete weight: 1290 kg / 2844 lbs
  Required operating pressure: 190 bar / 2755 psi
  Flow range: 40 - 70 l/min / 10.65 - 18.48 gpm
• MMB 600/450A
  Tractor operating power: 70 - 100 HP / 52 - 76 kW
  Width: 1920 mm / 75.6 in
  Bucket volume: 600 l / 0.78 c.y.
  Mixing capacity: 450 l / 0.59 c.y.
  Bucket weight: 730 kg / 1609 lbs
  Bucket + concrete weight: 1810 kg / 3990 lbs
  Required operating pressure: 190 bar / 2755 psi
  Flow range: 50 - 80 l/min / 13.2 - 21.12 gpm
• MMB 800/600A
  Tractor operating power: 90 - 120 HP / 67 - 89 kW
  Width: 1920 mm / 75.6 in
  Bucket volume: 800 l / 1.05 c.y.
  Mixing capacity: 600 l / 0.78 c.y.
  Bucket weight: 950 kg / 2094 lbs
  Bucket + concrete weight: 2390 kg / 5269 lbs
  Required operating pressure: 190 bar / 2755 psi
  Flow range: 50 - 80 l/min / 13.2 - 21.12 gpm
• MMB 900/700A
  Tractor operating power: 100 - 150 HP / 76 - 112 kW
  Width: 2170 mm / 85.4 in
  Bucket volume: 900 l / 1.18 c.y.
  Mixing capacity: 700 l / 0.92 c.y.
  Bucket weight: 1000 kg / 2205 lbs
  Bucket + concrete weight: 2680 kg / 5908 lbs
  Required operating pressure: 190 bar / 2755 psi
  Flow range: 60 - 100 l/min / 15.84 - 26.4 gpm
• MMB 1250/1000A
  Tractor operating power: 120 - 200 HP / 89 - 149 kW
  Width: 2200 mm / 86.6 in
  Bucket volume: 1250 l / 1.63 c.y.
  Mixing capacity: 1000 l / 1.31 c.y.
  Bucket weight: 1380 kg / 3042 lbs
  Bucket + concrete weight: 3780 kg / 8333 lbs
  Required operating pressure: 190 bar / 2755 psi
  Flow range: 70 - 120 l/min / 18.48 - 31.68 gpm

Technical specifications

• 3-point coupling with tilting mechanism for tractors
• Patented 'Cross Mixing' system (Patent No. 21315) for improved homogeneity and up to 30% faster mixing
• Constructed in wear‑resistant steels: Hardox, Sidur, Quard
• 3‑year warranty
• Available models: MMB 450/300A, MMB 600/450A, MMB 800/600A, MMB 900/700A, MMB 1250/1000A
• Required operating pressure across models: 190 bar / 2755 psi
• Flow range varies by model from 40 to 120 l/min depending on model
