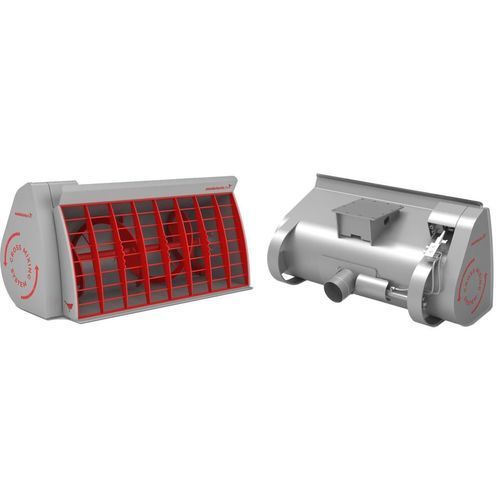

Concrete mixing bucket MMB series

for excavators

Product overview
Modularis concrete mixing buckets for excavators provide an on-site mixing solution for concrete, soil-additive blends and other materials requiring mechanical mixing. Designed for direct attachment to excavators, they enable transport and placement of mixed material on sidewalks, driveways and small construction sites.

Key features

• Patented Cross Mixing system (Patent No. 21315) for improved mix homogeneity.
• Up to 30% faster mixing times versus conventional systems.
• Lower fuel consumption during mixing operations.
• Manufactured from wear-resistant steels: Hardox, Sidur and Quard.
• 3-year warranty.

Superior Mixing System
The patented Cross Mixing concept ensures uniform distribution of materials and additives, improving final concrete consistency and operational efficiency for repetitive on-site production.

Applications

• On-site concrete production for sidewalks, driveways and small structures.
• Mixing soil with additives for ground preparation.
• Preparation of animal feed and other mixed materials requiring mechanical blending.
• Transport and placement of mixed material directly from the excavator.

Technical specifications (models)

• MMB 200/150E
  Machine Operating Weight: 2-3 t / 4400 - 6600 lbs
  Width: 1350 mm / 53.1 in
  Bucket Volume: 200 l / 0.26 c.y.
  Mixing Capacity: 150 l / 0.20 c.y.
  Bucket Weight: 270 kg / 595 lbs
  Bucket + Concrete Weight: 630 kg / 1389 lbs
  Required operating pressure: 190 bar / 2755 psi
  Flow range: 30 - 60 liters per min / 7.9 - 15.84 gallons per min
• MMB 250/175E
  Machine Operating Weight: 3-4 t / 6600 - 8800 lbs
  Width: 1180 mm / 46.5 in
  Bucket Volume: 250 l / 0.33 c.y.
  Mixing Capacity: 175 l / 0.23 c.y.
  Bucket Weight: 350 kg / 772 lbs
  Bucket + Concrete Weight: 770 kg / 1698 lbs
  Required operating pressure: 190 bar / 2755 psi
  Flow range: 30 - 60 liters per min / 7.9 - 15.84 gallons per min
• MMB 300/200E
  Machine Operating Weight: 4-6 t / 8800 - 13200 lbs
  Width: 1330 mm / 52.4 in
  Bucket Volume: 300 l / 0.39 c.y.
  Mixing Capacity: 200 l / 0.26 c.y.
  Bucket Weight: 370 kg / 816 lbs
  Bucket + Concrete Weight: 850 kg / 1874 lbs
  Required operating pressure: 190 bar / 2755 psi
  Flow range: 40 - 70 liters per min / 10.65 - 18.48 gallons per min
• MMB 350/250E
  Machine Operating Weight: 6-8 t / 13200 - 17600 lbs
  Width: 1670 mm / 65.7 in
  Bucket Volume: 350 l / 0.46 c.y.
  Mixing Capacity: 250 l / 0.33 c.y.
  Bucket Weight: 410 kg / 904 lbs
  Bucket + Concrete Weight: 1010 kg / 2227 lbs
  Required operating pressure: 190 bar / 2755 psi
  Flow range: 40 - 70 liters per min / 10.65 - 18.48 gallons per min
• MMB 450/300E
  Machine Operating Weight: 8-12 t / 17600 - 26400 lbs
  Width: 1920 mm / 75.6 in
  Bucket Volume: 450 l / 0.59 c.y.
  Mixing Capacity: 300 l / 0.39 c.y.
  Bucket Weight: 450 kg / 992 lbs
  Bucket + Concrete Weight: 1170 kg / 2579 lbs
  Required operating pressure: 190 bar / 2755 psi
  Flow range: 40 - 70 liters per min / 10.65 - 18.48 gallons per min
• MMB 600/450E
  Machine Operating Weight: 12-16 t / 26400 - 35200 lbs
  Width: 1920 mm / 75.6 in
  Bucket Volume: 600 l / 0.78 c.y.
  Mixing Capacity: 450 l / 0.59 c.y.
  Bucket Weight: 580 kg / 1279 lbs
  Bucket + Concrete Weight: 1660 kg / 3660 lbs
  Required operating pressure: 190 bar / 2755 psi
  Flow range: 50 - 80 liters per min / 13.2 - 21.12 gallons per min
• MMB 800/600E
  Machine Operating Weight: 16-20 t / 35200 - 44000 lbs
  Width: 1920 mm / 75.6 in
  Bucket Volume: 800 l / 1.05 c.y.
  Mixing Capacity: 600 l / 0.78 c.y.
  Bucket Weight: 750 kg / 1653 lbs
  Bucket + Concrete Weight: 2190 kg / 4828 lbs
  Required operating pressure: 190 bar / 2755 psi
  Flow range: 50 - 80 liters per min / 13.2 - 21.12 gallons per min
• MMB 900/700E
  Machine Operating Weight: 18-22 t / 39600 - 48400 lbs
  Width: 2170 mm / 85.4 in
  Bucket Volume: 900 l / 1.18 c.y.
  Mixing Capacity: 700 l / 0.92 c.y.
  Bucket Weight: 800 kg / 1764 lbs
  Bucket + Concrete Weight: 2480 kg / 5457 lbs
  Required operating pressure: 190 bar / 2755 psi
  Flow range: 60 - 100 liters per min / 15.84 - 26.4 gallons per min
• MMB 1250/1000E
  Machine Operating Weight: 22-30 t / 48400 - 66000 lbs
  Width: 2200 mm / 86.6 in
  Bucket Volume: 1250 l / 1.63 c.y.
  Mixing Capacity: 1000 l / 1.31 c.y.
  Bucket Weight: 1110 kg / 2447 lbs
  Bucket + Concrete Weight: 3510 kg / 7738 lbs
  Required operating pressure: 190 bar / 2755 psi
  Flow range: 70 - 120 liters per min / 18.48 - 31.68 gallons per min
