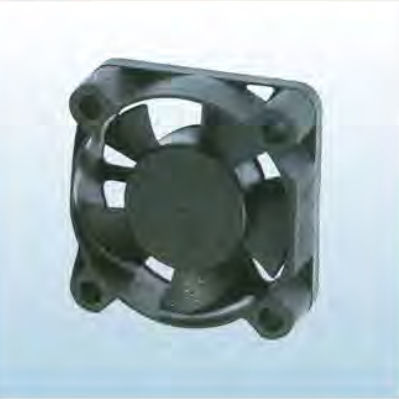

Electronic fan FS-3010 seriesaxialventilation12 Vdc
Add to favorites
Compare this product
Characteristics
- Installation
- for electronics
- Configuration
- axial
- Function
- ventilation
- Supply voltage
- 12 Vdc
- Drive mechanism
- electrically-powered
- Material
- plastic
- Air flow
Max.: 0.11 m³/min
(3.885 ft³/min)Min.: 0.07 m³/min
(2.472 ft³/min)- Rotational speed
Max.: 10,000 rpm
(62,832 rad.min-1)Min.: 6,000 rpm
(37,699 rad.min-1)- Noise level
Max.: 29 dB
Min.: 18 dB
Description
Frame: Thermal Plastic , UL 94V-0
Impeller: Thermal Plastic , UL 94V-0
Lead Wire:AWG#26 UL1007 ( Optional )
( + ) : Red (-):Black
Insulation Résistance:
Above 10M Between Lead wire and Frame DC500V
