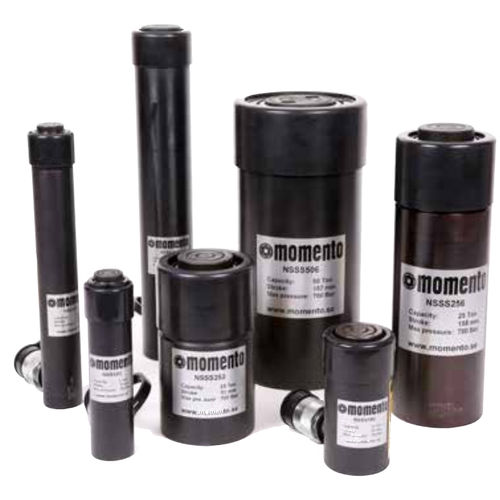

Hydraulic cylinder
piston

hydraulic cylinder
hydraulic cylinder
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Technology
piston
Stroke

Min.: 26 mm
(1.024 in)

Max.: 361 mm
(14.213 in)

Description

• All our cylinders are designed for a maximum hydraulic pressure of 700 bar (70 MPa). • The cylinders are fitted with coupling (female part) designed for high flows. All cylinders can be supplied with quick couplers, see page 30. • The piston rod is coated with hard chrome. • Cylinder is surface treated with nitrocarburizing with after oxidation ( ”nitrokarb”). • On top of the piston is a strong pressure head to avoid deformation of the piston. • The cylinders have a built-in return spring that pulls back the plunger when the pressure is relieved.
