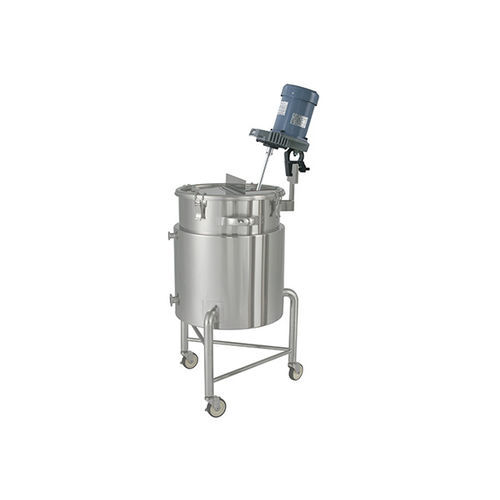

Stainless steel tank KTTK-J-L series

cylindricalmobilestorage

Inclined bottom container to which a portable agitator can be attached. With caster legs, it can be moved from process to process per container. Comes with a jacket to control the temperature by flowing water. ○The pedestal for the agitator mounting [KTT-J-L] is attached to the one tapered container (clamp stop). ○The bottom plate is inclined in the discharge direction, and the contents can be discharged smoothly. ○Since the outlet is attached to the side of the container, it is possible to shorten the piping routing. ○With casters that can be moved while the agitator is attached to the container. ○It is hygienic with a stainless container that is resistant to rust. ○Liquid can be sent by connecting a pump. Containers and jacket leg ... SUS304 Lid ... SUS304 Caster ... SUS + urethane vehicles (two with thaContainer/Jacket/Leg ... SUS 304 Lid ... SUS 304 Caster ... SUS + Urethane Truck (With Inner Stopper 2 Pieces) Packing ... Silicon Rubber (Food Sanitation Law Compliant Product) Drain Height (H2) ... 400 mm Jacket Nozzle ... 15 A Herrall ●Surface Treatment: Inner and Outer Surface 0.2Ra ●Conditions of use: atmospheric pressure (Do not pressurize or decompress.) *Stirrer is sold separately. We will make an estimate through a separate meeting. *We also design and manufacture for your clamp type agitator (blender).e inner stopper)
