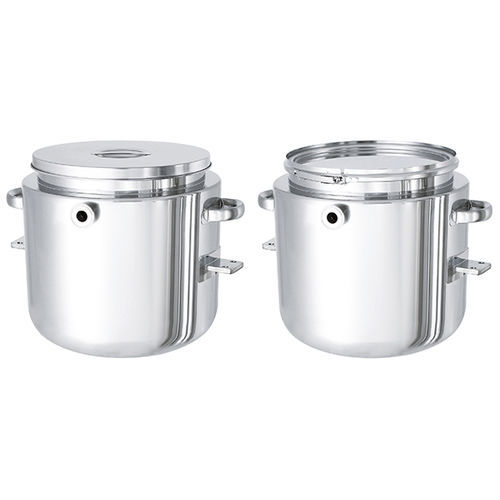

Cylindrical tank DT-J-BRK series

for liquidswith temperature controlstainless steel

Stainless steel container with bracket that can be attached to frame or device Head plate bottom type with temperature control jacket and excellent agitation and discharge properties ○The container can be attached and removed according to the work, and can be incorporated into a part of the device. ○Comes with a jacket (outer cistern) that can keep the contents warm and cool by flowing water. ○The bracket has two holes so that it can be fixed with screws, etc. ○150 L container has lifting fittings (holes). ○Containers and brackets can be custom-made according to the location and use. ○There is also a product that comes with a set of a dedicated stand, [DT-J-ASC] with a jacket container and stand. Container Body/Lid/Handle ... SUS 304 Lever Band (DT-CTL-J-BRK only) ... SUS 304 Packing (DT-CTL-J-BRK only) ... Silicon Rubber (Food Sanitation Law Compliant Product) Hanging Lug (565 size only) ... SUS 304 Jacket Nozzle ... 1S Ferrule ●Surface Treatment: Inner and Outer Surface 0.2Ra ●Conditions of use (Inner Tank/Jacket): atmospheric pressure (Do not pressurize or decompress.) *Please contact us if you want to put pressure on the jacket.
