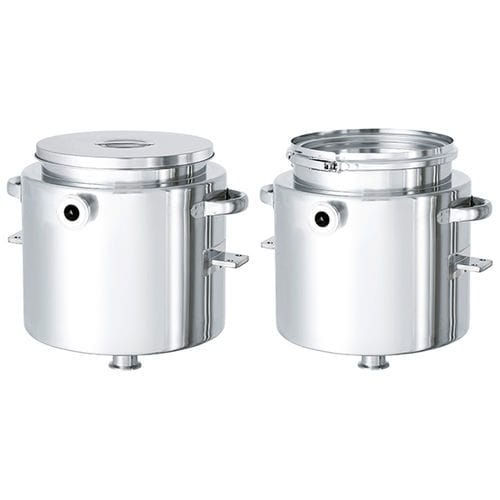

Liquid tank HT-J-BRK series

with temperature controlstainless steelhopper

Stainless steel container with bracket that can be attached to frame or device Hopper type with temperature control jacket and excellent discharge of liquid ○The container can be attached and removed according to the work, and can be incorporated into a part of the device. ○Comes with a jacket (outer cistern) that can keep the contents warm and cool by flowing water. ○The bracket has two holes so that it can be fixed with screws, etc. ○150 L container has lifting fittings (holes). ○Containers and brackets can be custom-made according to the location and use. ○There is also a hopper type jacket container with a set of a special stand [HT-J-ASC]. Container Body/Lid/Handle ... SUS 304 Lever Band (HT-CTL-J-BRK only) ... SUS 304 Packing (HT-CTL-J-BRK only) ... Silicon Rubber (Food Sanitation Law Compliant Product) Hanging Lug (565 size only) ... SUS 304 Jacket Nozzle ... 1S Ferrule ●Surface Treatment: Inner and Outer Surface 0.2Ra ●Conditions of use (Inner Tank/Jacket): atmospheric pressure (Do not pressurize or decompress.) *Please contact us if you want to put pressure on the jacket.
