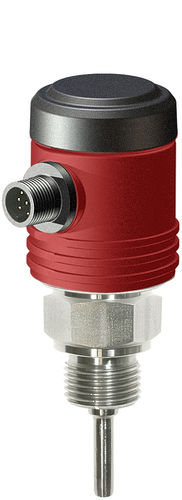

Type K thermocouple temperature transmitter MSTS-WT seriesRTDPt100HART
Add to favorites
Compare this product
Characteristics
- Input type
- type K thermocouple, RTD, Pt100
- Output signal
- HART
- Applications
- process
Description
The temperature transmitter MSTS-WT is equipped with a thermocouple input type K, as well as RTD (Pt100) and one 4-20 mA analog output (2-wire). The configuration happens via HART interface/software. This temperature transmitter comes with a sensor tube length of up to 1000 mm and protection class IP65 (Electronic completely potted). 8 electrical connection types are possible and it offers the following possible process connections: 1/4", 3/8", 1/2", 3/4", 1", 1/4 NPT, 3/8 NPT and 1/2 NPT. The housing and the cover are made of PBT GF30 and the process connection is made of 1.4571 stainless steel.
