Force and torque sensor

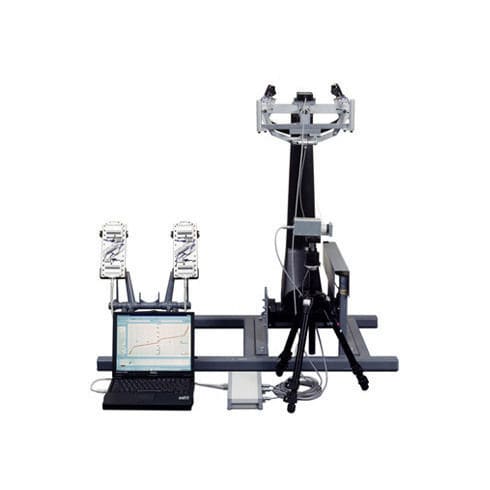

Product descriptionThe Moog control force measurement device enables precise measurement of force–position control and the dynamic response of real and simulated flight control systems. Comparing real and simulated data provides insight into how accurately the simulator represents the aircraft. The Moog control force measurement device is used, for example, by aviation authorities for simulator certification.

Benefits

• Simple, user‑friendly operation
• Delivers critical data on the response behavior of flight control systems
• Designed to measure force and position across a wide range of control actuators for fixed‑ and rotary‑wing aircraft

Applications

• Precise force–position measurements for aerospace simulation systems
• Verification of software models for force simulation
• Certification of force simulation systems in flight simulators

Technical characteristics / specifications

• Type: control force measurement device for force–position control
• Purpose: measurement of force and position response and dynamic behavior of flight controls
• Scope: real and simulated flight control systems; suitable for fixed‑ and rotary‑wing aircraft
• Value: enables comparison of real measurement data with simulation data to assess simulator fidelity
• Usage: employed by aviation authorities for simulator certification
• Operating feature: user‑friendly, easy operation
