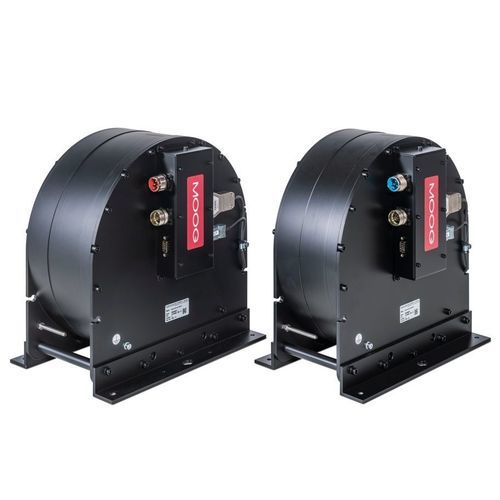

Electric servo-actuator

rotaryservo-motordirect-drive

Product overview
Electric rotary actuators in the high-dynamics range use high-torque servomotors to deliver continuous output torque up to 200 Nm. Four nominal models are offered: 200 Nm, 150 Nm, 100 Nm and 50 Nm (multi-turn). The actuators employ high-performance direct-drive motors and are designed for continuous operation in force-simulation and control-loading applications.

Advantages

• High continuous torque density through brushless DC servomotors and digital control electronics
• Seamless integration with Moog industrial force-simulation systems and control-loading platforms
• Designed for mission-critical force-simulation applications with predictable performance

Applications

• Control-force simulation and force feedback for flight simulators, pilot training systems and aerospace test benches

Characteristics / Technical specifications

• Maximum continuous output torque: up to 200 Nm
• Available models: 200 Nm, 150 Nm, 100 Nm, 50 Nm (Multi-Turn)
• Drive: direct-drive high-performance servomotors
• Motor type: brushless DC with digital control electronics
• Primary use: force-simulation systems and control-loading for aerospace applications
