Hydraulic actuator

rotarywith servo-motorDC

Product description

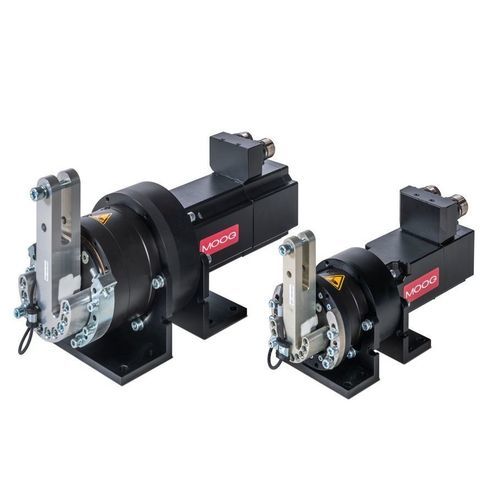

Moog medium-dynamics rotary actuators are built around brushless DC servo motors with digital control electronics and are intended for primary and secondary control applications. Depending on required output torque, two actuator versions are available: 100 Nm and 40 Nm. Compact units can also be supplied in motor/gearbox housing combinations for continuous output torques up to 100 Nm.

Benefits

• Smooth, reliable operation provided by brushless DC motors and digital control electronics
• Designed for seamless integration with a broad range of Moog force-feedback systems
• Proven reliability for safety-critical force-feedback applications

Application

• Compact primary and secondary force-feedback actuation systems for flight and aerospace simulators

Characteristics / Technical specifications

• Motor: brushless DC servo motor
• Control: digital control electronics
• Available output torques: 40 Nm and 100 Nm
• Optional motor/gearbox housing combinations for continuous output torques up to 100 Nm
• Target application: primary and secondary controls in force-feedback systems
