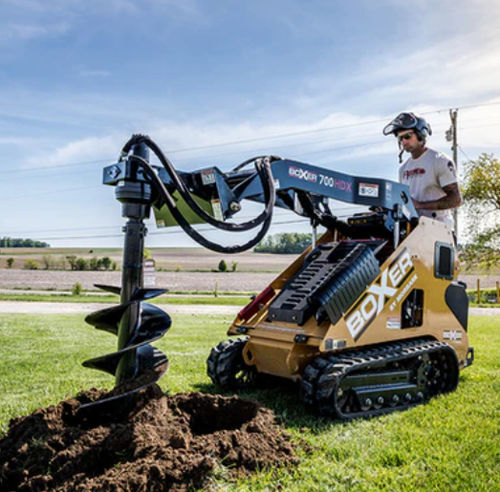

Diesel engine mini skid steer loader 700HDX
crawler

diesel engine mini skid steer loader
diesel engine mini skid steer loader
diesel engine mini skid steer loader
diesel engine mini skid steer loader
Add to favorites
Compare this product


Characteristics

Motor type
diesel engine
Specifications
crawler
Engine power

18.5 kW
(25.15 hp)

Operating weight

1,306 kg
(2,879.2 lb)

Description

The 700HDX features a unique hydraulically expandable undercarriage — from 35″ (89 cm) to 43.5″ (111 cm) — allowing the operator to retract the undercarriage for passages as narrow as 36″ (91 cm) wide then expand for increased stability while in operation by simply pulling or pushing a control lever. With a 24.8-HP (18.5-kW) diesel engine and 11.3 gpm (8.7 lpm) hydraulic auxiliary flow, the 700HDX provides all the power you need for tough jobs. The 700HDX boasts a variety of features, including a redesigned platform with added creature comforts, hydrostatic drive, piloted joystick controls, rubber-isolated engine and hydraulic components, tightened boom tolerances and a whole lot more! TYPE - Kubota COOLING SYSTEM - Liquid FUEL TYPE - Diesel FUEL CAPACITY - 9 Gallons, 34 Litres HYDRAULIC CAPACITY - 24 Gallons, 91 Litres SYSTEM FLOW (TOTAL) - 27.1 GPM, 103 L/min HYDRAULIC FLOW AUX (HI/LO) - 11.3/8.7 GPM, 43/33 L/min HYDRAULIC FLOW (DRIVE) - 7.1 GPM, 27 L/min SYSTEM PRESSURE - 3000 PSI, 20684 kPa ENGINE WARRANTY - 2 years PRODUCT WARRANTY - 1 year TRACK GAUGE - 33.75 in, 857 mm TRACK WIDTH - 9 in, 230 mm LENGTH (NO ATTACHMENT) - 77 in, 1956 mm LENGTH (W/BUCKET) - 96 in, 2438 mm WIDTH (FULLY RETRACTED) - 34.5 in, 876 mm WIDTH (FULLY EXTENDED) - 43.5 in, 1105 mm HEIGHT (BOOM LOWERED) - 54 in, 1372 mm HEIGHT (BOOM RAISED) - 98 in, 2489 mm HINGE PIN HEIGHT - 77 in, 1956 mm DUMP HEIGHT - 60 in, 1524 mm DUMP ANGLE - 37 Degrees REACH - 34 in, 864 mm TIP CAPACITY - 2020 lb, 915 kg OPERATING CAPACITY, 35% OF TIP LOAD - 707 lb, 320 kg GROUND CLEARANCE - 5 in, 127 mm GROUND SPEED - 4.5 MPH, 7.2 km/h GROUND PRESSURE - 4.12 PSI, 29.7 kPa
