Diesel mini skid steer loader 385D

crawler

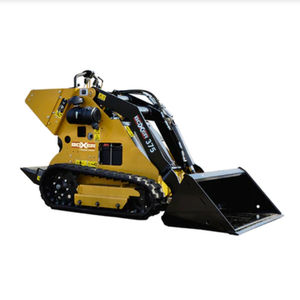

The small but powerful Boxer 385D can handle “big machine” tasks while providing ease of access due to the smaller footprint. Able to handle a full complement of attachments, the diesel-powered 385D allows you to minimize hand labor, reduce overhead and increase productivity. At 35" (889 mm) wide, the unit can fit through a standard gate. The two-pump, 2,800 psi (193 bar) hydraulic operating system develops optimum hydraulic flow to run the machine’s auxiliary and propulsion systems, providing enough power to handle full-size attachments. A dedicated oil cooler to better manage hydraulic heat generation. With a universal compact utility loader mounting plate and quick-attach system, you can quickly and easily switch between any standard attachments. ENGINE - Kohler COOLING SYSTEM - Liquid FUEL TYPE - Diesel FUEL CAPACITY - 4.5 Gallons, 17.1 Litres HYDRAULIC CAPACITY - 16 Gallons, 60.6 Litres HYDRAULIC FLOW (COMBINED) - 11 GPM, 41.6 L/min HYDRAULIC FLOW (AUX) - 8 GPM, 30.3 LPM HYDRAULIC FLOW (DRIVE) - 3.0 GPM, 11.4 LPM SYSTEM PRESSURE - 2800 PSI, 19,305.3 kPa ENGINE WARRANTY - 3 years PRODUCT WARRANTY - 1 year TRACK GAUGE - 27.5 in, 699 mm TRACK WIDTH - 7 in, 180 mm WEIGHT (NO ATTACHMENT) - 1913 lb, 867.72 kg LENGTH (NO ATTACHMENT) - 68 in, 1727 mm LENGTH (W/BUCKET) - 93 in, 2362 mm WIDTH (OVERALL) - 35 in, 889 mm HEIGHT (BOOM LOWERED) - 48 in, 1219.2 mm HEIGHT (BOOM RAISED) - 92 in, 2337 mm HINGE PIN HEIGHT - 70 in, 1778 mm DUMP HEIGHT - 54 in, 1372 mm DUMP ANGLE - 34 Degrees REACH - 28 in, 711 mm TIP CAPACITY - 1100 lb, 498.9 kg GROUND CLEARANCE - 5 in, 127 mm GROUND SPEED (MAX) - 3.4 mph, 5.5 km/h GROUND PRESSURE - 3.8 PSI, 26.2 kPa
