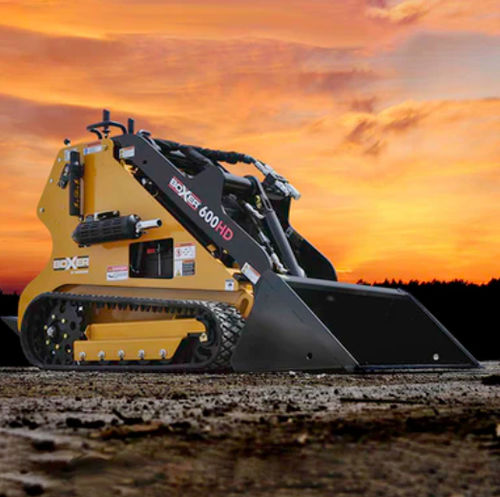

Diesel engine mini skid steer loader 600HD

crawler

Powered by a diesel engine and producing 11.3 gpm (43 l/min) of auxiliary hydraulic flow from the single remote auxiliary lines, this model provides all the power needed for tough jobs. The 600HD features a 74″ (188 cm) hinge pin height and a 531 lb (241 kg) rated operating capacity, with a tip capacity of 1,535 lb (695 kg) and fixed track width of 34.7” (88 cm). The 600HD boasts a variety of new features, including a redesigned platform with added creature comforts, hydrostatic drive, piloted joystick controls, rubber-isolated hydraulic components, tightened boom tolerances and a whole lot more! TYPE - Kubota COOLING SYSTEM - Liquid FUEL TYPE - Diesel FUEL CAPACITY - 4.5 Gallons, 17.1 Litres HYDRAULIC CAPACITY - 16 Gallons, 60.6 Litres SYSTEM FLOW (TOTAL) - 22 GPM, 83 L/min HYDRAULIC FLOW AUX (HI) - 11.3 GPM, 43 L/min HYDRAULIC FLOW (DRIVE) - 10.7 GPM, 41 L/min SYSTEM PRESSURE - 3000 PSI, 20684 kPa ENGINE WARRANTY - 2 years, 2,000 Hours PRODUCT WARRANTY - 1 year, 1,000 Hours TRACK GAUGE - 27 in, 686 mm TRACK WIDTH - 7 in, 180 mm WEIGHT (NO ATTACHMENT) - 2240 lb, 1015 kg LENGTH (NO ATTACHMENT) - 73.4 in, 1864 mm LENGTH (W/BUCKET) - 96 in, 2438 mm WIDTH (OVERALL) - 34.7 in, 881 mm HEIGHT (BOOM LOWERED) - 52.7 in, 1339 mm HEIGHT (BOOM RAISED) - 98 in, 2489 mm HINGE PIN HEIGHT - 74 in, 1880 mm DUMP HEIGHT - 56 in, 1422 mm DUMP ANGLE - 37 Degrees REACH - 34 in, 864 mm TIP CAPACITY - 1535 lb, 695 kg GROUND CLEARANCE - 5 in, 127 mm GROUND SPEED (FWD/REV) - 4.3/3.1 MPH, 7.0/5.0 km/h GROUND PRESSURE - 5.36 PSI, 37 kPa
