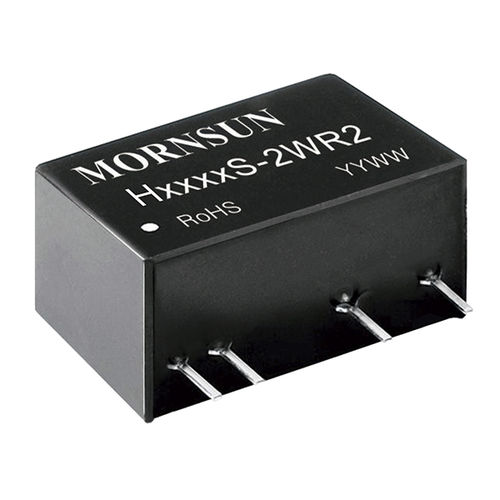

SIP DC-DC converter H_S-2WR2
unregulatedfor medical applicationsinsulated

SIP DC-DC converter
SIP DC-DC converter
Add to favorites
Compare this product


Characteristics

Configuration
SIP
Electrical characteristics
unregulated
Applications
for medical applications
Other characteristics
compact, single-output, insulated, dual-output
Input voltage

Min.: 4.5 V

Max.: 26.4 V

5 V, 12 V, 15 V, 24 V

Output voltage

Min.: 5 V

Max.: 15 V

Power

2 W

Description

H_S-2WR2 series meets reinforced insulation requirements. They are especially designed for applications where extremely high isolation, low insulation capacitor with low leakage current in a compact package size is required. They are widely used in applications such as medical, electrical grid, IGBT driver circuits and similar where: 1. The voltage of the input power supply is relatively stable with a variation of ±10%Vin or less; 2. An extremely high input to output isolation voltage of up to 4200VAC or 6000VDC is required; 3. The requirement for ripple & noise or a tight output regulation is not as strict. FEATURES SIP package High efficiency up to 84% Reinforced insulation Patient leakage current 2µA max. I/O isolation test voltage 4.2k VAC or 6k VDC Operating ambient temperature: -40℃ to +85℃ Internal surface mounted design Industry standard pin-out EN60601-1, ANSI/AAMI ES60601-1 approved (1xMOPP/2xMOOP)
