Digital signal conditioner WiMER3

USBsingle-channelbuilt-in

Overview

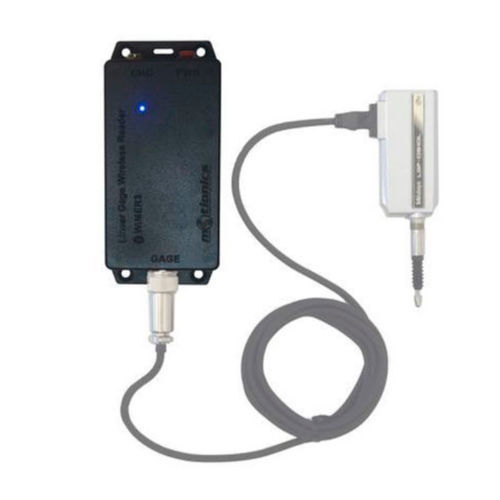

Transmitter only, gage NOT included. WiMER3 is a Bluetooth Low Energy (BLE) transmitter with a rechargeable built-in battery, designed for use with Mitutoyo linear LVDT gages that provide 90° phase difference and differential square-wave outputs. WiMER3 streams measurements wirelessly to iPhone, iPad, Android devices and Windows PC (USB Bluetooth dongle required for PC). It eliminates the need for external signal conditioners.

Compatible Mitutoyo LVDT Models

• 542-156, 157, 158, 161, 162, 163, 164, 165, 166, 171, 172, 173, 174, 175, 176
• 542-181, 182, 204, 222, 223, 224, 230, 244, 262, 264, 270, 401, 421, 612, 613
• More

Cloud Remote Reading Option
WiMER3 integrates with the MultiGage Cloud platform, a browser-based IoT solution for remote data access. By connecting BLE gages to a MultiGage Cloud gateway, users can view live readings and historical data from any location. Features include multi-sensor connectivity, customizable dashboards, smart alerts and notifications, reading history, remote sensor controls and analytics (treemaps, map view, summary view). MultiGage Cloud is subscription-based.

Software
iOS
MultiGage for iOS supports connection to multiple WiMER3 devices for wireless reading and recording on iPhone and iPad. An Apple Watch companion app displays readings on the wrist and can start/stop recordings.

Android
MultiGage for Android enables multiple-device connectivity on Android smartphones and tablets and supports wireless recording of measurements.

Windows
MultiGage for Windows, used with a USB Bluetooth dongle, streams readings from multiple devices to any Windows PC (Windows 7 or later).

LabVIEW
LabVIEW compatibility is provided via a Dial Reading VI to support device scanning, connection and data collection for custom application development.

Included

• WiMER3 Base x1
• USB Charging Cable x1
• USB Power Adapter x1
• User Manual x1
• BLE Dongle (Optional; required for PC use)
• Extended Warranty (Optional)

Documents (available)

• Brochure
• User Guide
• Full Product Catalog
• MultiGage Brochure
• Flyer

Technical specifications

• Dimensions: 4.09 x 2.20 x 0.91″
• Measuring Range: 0.39″ / 10 mm (depending on linear gage)
• Resolution: 0.000005″ / 0.0001 mm (depending on linear gage)
• Wireless Data Rate: 10 Hz
• Transmission Range: Up to 33 ft / 10 m (indoors) / 100 ft / 30 m (outdoors)
• Working Temperature: 32 to 122 °F
• Battery: 2500 mAH rechargeable
• Battery Life: 30 hr
• Charging: 5 VDC USB
