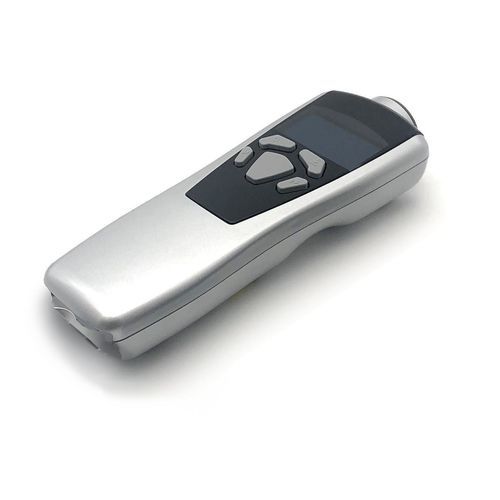

Contact tachometer BlueTak

non-contactbenchtophandheld

Overview
BlueTak is a Bluetooth digital tachometer for remote viewing and recording of rotational speed on iOS, Android and Windows devices via Motionics' MultiGage software. It supports both contact and non-contact measurement modes and enables multiple instruments to connect simultaneously for streamlined data collection and improved on-site safety.

Compatibility / Software
BlueTak pairs with Motionics' MultiGage cross-platform application to read, display and record measurements wirelessly on iPad, iPhone, Android devices and Windows PCs.

iOS

• MultiGage for iOS connects to multiple devices and allows wireless read/record on iPad or iPhone.
• Apple Watch companion app: view readings on the wrist, start/stop continuous recording or capture single readings from Apple Watch.

Android

• MultiGage for Android supports multiple device connectivity and wireless measurement on Android devices.

Windows

• MultiGage for Windows streams readings from multiple devices to a Windows PC (requires a USB Bluetooth Low Energy dongle for Bluetooth on Windows).

Cloud Remote Reading Option
BlueTak is compatible with MultiGage Cloud, a browser-based IoT platform. By connecting BlueTak units to a MultiGage Cloud Gateway you can view live readings and history remotely. Features include multi-sensor connectivity, customizable dashboards, alerts/notifications, reading-history access, remote sensor controls and analytics (treemaps, map view, summary). MultiGage Cloud is subscription-based.

Videos

• BlueTak: Wireless Tachometer for Rotation Measurement
• BlueTak: Wireless Tachometer (DEMO)

Documents

• BlueTak Brochure (PDF)
• BlueTak User Guide (PDF)

Technical specifications

• Measurement range (Contact): 0.8–25,000 rpm
• Measurement range (Non-contact): 6–99,999 rpm
• Resolution (Contact): 1 RPM
• Resolution (Non-contact): 0–9,999: 0.1 RPM; 10,000 and above: 1 RPM
• Accuracy: ±0.006% of reading ±1 least significant digit
• Wireless data rate: 2 Hz
• Transmission range: 66 ft / 20 m (indoors); 100 ft / 30 m (outdoors)
• Working temperature: 32 to 122°F
• Battery: 2 × AA batteries
