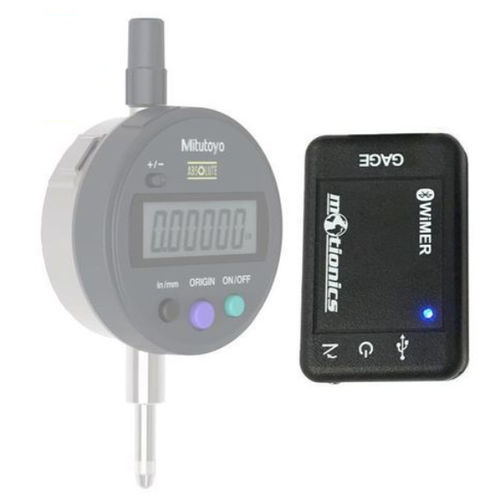

Bluetooth wireless sensor transmitter WiMER1

long-range

Overview
WiMER1 is a wireless transmitter that connects to Mitutoyo and Mahr instruments with digimatic output. It reads digital caliper, micrometer and dial indicator data and transmits readings to smart devices and Windows PCs via Bluetooth Low Energy. Users can view readings in real time, perform remote zeroing and record measurements in single or continuous mode (continuous at 10 samples/second).

Transmitter details
Transmitter only; the measuring gage is NOT included.

Compatible Mitutoyo Instruments

• Caliper Series 500, 551, 552, 573
• Height Gage Series 192, 570, 574
• Micrometer Series 227, 293, 314, 317, 323, 324, 326, 331, 342, 343, 369, 389, 395, 406, 422
• Dial Indicator Series 543 with SPC output
• Dial Indicator Series 575
• Thickness Gage Series 547
• Digimatic Caliper Gage Series 209

Compatible Mahr Instruments

• Caliper MarCal 16, 18
• Depth Gage MarCal 30
• Height Gage 814 SR
• Micrometer Micromar 40, 44
• Dial Indicator MarCator 1075, 1086, 1087

Software & Platforms

• MultiGage (free cross-platform reader for iOS, Android, Windows) — view and record measurements wirelessly from multiple sensors
• MultiGage Windows application — stream readings to Windows PCs (PC requires USB Bluetooth dongle)
• MultiGage Cloud — browser-based IoT platform for real-time monitoring, history, dashboards, alerts and analytics (subscription)
• iOS and Android companion apps — capture and view readings; Apple Watch app available
• LabVIEW support — Dial Reading VI for scanning, connection and data collection

Included (standard)

• WiMER1 Base x1
• Trigger Switch x1
• USB Charging Cable x1
• USB Power Adapter (US orders only) x1
• User Manual x1
• BLE Dongle (Optional) — required for PC use
• Data Cable (Optional)
• Extended Warranty (Optional)

Specifications

• Dimensions: 2.50 x 1.63 x 1.57"
• Wireless data rate: 10 Hz
• Transmission range: 65 ft / 20 m (indoors); 100 ft / 30 m (outdoors)
• Operating temperature: 32 to 122 °F
• Rechargeable battery: 400 mAh (approx. 60 hrs battery life)
• Charging: 5 V DC via USB
• Measurement range, resolution and accuracy: depend on the connected instrument
