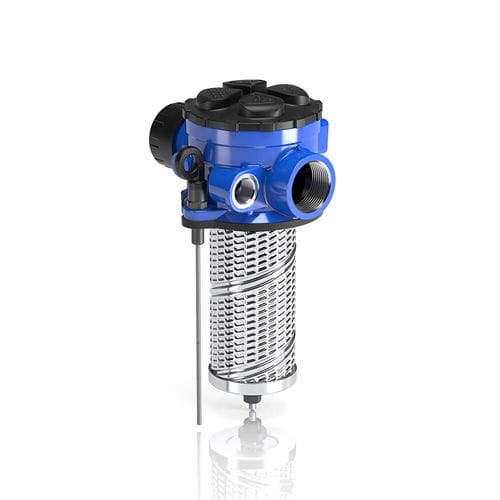

Hydraulic filter MPH seriescartridgepressureindustrial
Add to favorites
Compare this product
Characteristics
- Designed for
- hydraulic
- Filtration element
- cartridge
- Filtration method
- pressure
- Applications
- industrial
- Other characteristics
- return-line
- Operating pressure
10 bar
(145.038 psi)- Flow
3,000 l/min
(792.516 us gal/min)
Description
Tank mounted return filter, element oil flow internal to external. threaded connections from 3/4” to 1 1/2” BSP/NPT/SAE and SAE code 61 flanged connections up to 4" and DN 100 PN 10/16 UNI 2223.
Heavy duty high flow rate return filter available in single or dual ports, specifically designed for heavy duty applications, available with or without oil flow diffuser or magnetic column. "Inside to Outside" oil flow element design retains captured contamination within the element replacing the element and preventing contamination back into the tank. The air breather plug is integrated.
Catalogs
No catalogs are available for this product.
See all of MP Filtri‘s catalogsExhibitions
