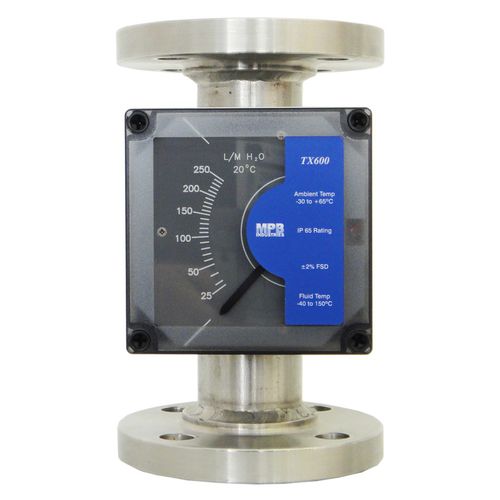

Variable-area flow meter TX600 series

for liquidsfor gas4-20 mA

The TX600 Metal Tube Transmitting Flowmeter been designed to meet demanding high pressure and corrosive applications where a local display, transmitted out and signal functions are required. The TX600 is manufactured in 1”, 2” and 3” flanged ANSI 150 RF and 1” and 2” BSPPF screwed versions. The TX600, whilst having a range of standard flow rates, can be calibrated for almost any liquid or gas. The materials of construction will assist the designer in selecting a compatible flowmeter for the medium being processed. The TX600 is ideal for high pressure flow indication. Applications can be found in the water, chemical and processing industries. The TX600 incorporates a 4-20mA two wire transmitter. This meets ATEX EEx ia IIC T4 specification. This transmitter also includes two independently wired NAMUR set points. For full specification and installation details, please read this In conjunction with MPBTB 120. SERIES TX600 FEATURES * 4-20mA ATEX OUTPUT * TWO FULLY ADJUSTABLE NAMUR ALARMS (HI/LO) * STANDARD FLANGED LENGTH 250MM, SCREWED VERSIONS MAY EXCEED THIS * STAINLESS STEEL CONSTRUCTION * LARGE CLEAR ANALOGUE INDICATOR DISPLAYING INSTANTANEOUS FLOW RATE * SUITABLE FOR HIGH PRESSURE APPLICATIONS * SUITABLE FOR CORROSIVE APPLICATIONS * STANDARD AND CUSTOMISED FLOW SCALES * ROBUST DESIGN * MINIMAL MAINTENANCE * FOR HIGHLY CORROSIVE APPLICATIONS, PLEASE SEE THE CUSTOM DESIGN MPB SERIES F5000 TRANSMITTING FLOWMETER (MPBTB 102)
