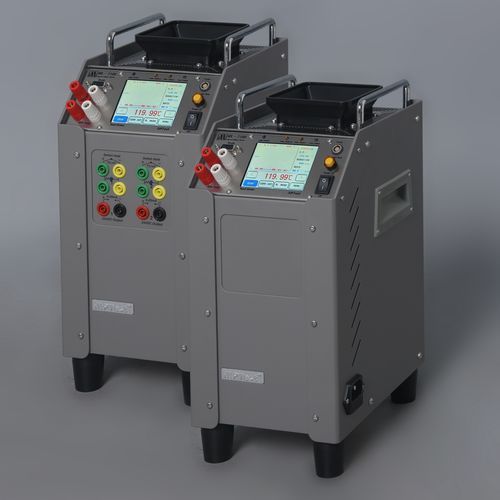

Low-temperature calibration bath ML-2180

portablefor thermometers

The ML-2180 miniature oil bath utilizes semiconductor-based refrigeration technology and is equipped with a magnetically-driven stirring system. This unit features an operating temperature range of -10°C to 155°C, with a bath diameter of 2.5 inches (63.5 mm) and a depth of 180 mm. The bath opening is fitted with an anti-splash rim, and the system achieves a temperature stability of ±0.01°C. Users have the option to configure the system with an inner flow guide sleeve and a thermometer calibration measurement module. Its compact design ensures excellent portability. - Operating Temperature: Methyl Silicone Oil(10cst): -10 ℃ to 155 ℃ (14°F to 311°F) - Working Area: Diameter 47mm (1.85"), Depth 180mm (7.1") - Wetted Parts: Aluminum and 304 stainless steel - Liquid Volume: Approximately 0.8 liters (0.2 gal) - Stirring Method: Magnetic Stirring - Temperature Control Method: Fully digital PID control - Display Resolution: 0.001 ℃ - Temperature Stability: ±0.01 ℃ /10min - Temperature Uniformity: ±0.02 ℃ - Heating Time: 20 minutes from 25°C(77°F) to 155°C(194°F) - Cooling Time: 30 minutes from 25°C(77°F) to -10°C(23°F) - Operating Voltage: 110VAC ±10%, 60Hz (Customizable Technical Specifications) - Rated Power: Approximately 300W - Dimensions: 170mm (6.7") x 230mm (9") x 350mm (13.8") - Net Weight: Approximately 13 kg (28.7 lb)
