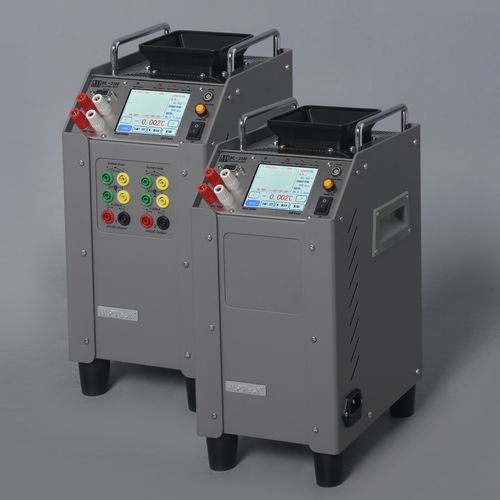

Low-temperature calibration bath ML-3100

high-precisionportablefor thermometers

The ML-3100 Mini Bath utilizes semiconductor-based refrigeration technology and jet-stream agitation technology. It features an operating temperature range of -10°C to 102°C, with a bath diameter of 47 mm and a depth of 200 mm, equipped with an anti-splash rim at the opening. The unit delivers a temperature stability of ±0.005°C. The bath can be fitted with a dedicated suspension fixture for freezing and storing small-sized water triple-point cells. It is also capable of performing comparative calibration of short-stem thermometers. Its compact design ensures excellent portability. - Operating Temperature: Antifreeze: -10 ℃ to 102 ℃ (14°F to 245.6°F) at 23 ℃ (73.4°F) - Working Area: Diameter 47mm (1.85"), Depth 200mm (7.87") - Wetted Parts: 304 stainless steel - Liquid Volume: Approximately 0.8 liters (0.2 gal) - Stirring Method: Jet stirring - Temperature Control Method: Fully digital PID control - Display Resolution: 0.001 ℃ - Temperature Stability: ±0.005 ℃ /10min - Temperature Uniformity: ±0.01 ℃ - Heating Time: 35 minutes from 25°C(77°F) to 90°C(194°F) - Cooling Time: 60 minutes from 25°C(77°F) to -5°C(23°F) - Operating Voltage: 110VAC ±10%, 60Hz (Customizable Technical Specifications) - Rated Power: Approximately 160W - Dimensions: 170mm (6.7") x 230mm (9") x 350mm (13.8") - Net Weight: Approximately 13 kg (28.7 lb)
