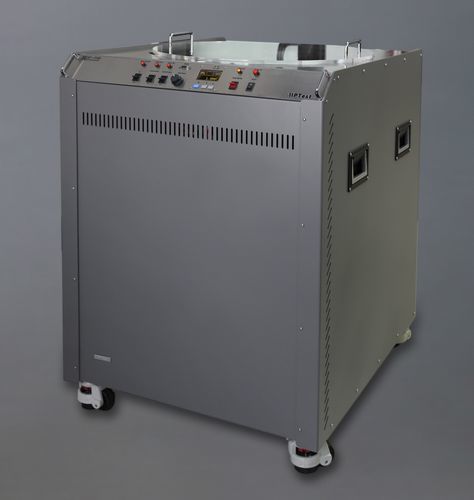

Low-temperature calibration bath AT-5100

high-temperaturefor temperature sensorshigh-precision

The AT-5100 is specifically designed for the calibration and value transfer of ocean environment sensors. Its titanium alloy bath uses seawater as the working medium, featuring a workspace diameter of 550 mm (21.65 inches) and a depth of 380 mm (14.96 inches). Equipped with an integrated thermostat to mitigate ambient temperature effects, combined with MPTest's jet-stream agitation technology and a high-precision temperature control system, it achieves a stability of ±0.0005°C at 2°C. The system incorporates MPTest's proprietary rapid-cooling technology, enabling swift temperature reduction. It is ideal for ocean sensor manufacturers requiring batch calibration of multiple probes simultaneously, as well as for R&D departments demanding ultra-stable conditions for technical development. - Operating Temperature: Seawater: -1.5 ℃ to 50 ℃ (29.3°F to 122°F), Seawater Salinization: -5 ℃ to 50 ℃ (23°F to 122°F) - Working Area: Diameter 550mm (21.6"), Depth 360mm (14.2") - Wetted Parts: Titanium Alloy - Liquid Volume: Approximately 100 liters (26.42 gal) - Stirring Method: Jet stirring, three-speed adjustable - Temperature Control Method: Fully digital PID control - Display Resolution: 0.001 ℃ - Temperature Stability: ±0.0005 ℃ /10min at 2 ℃ (35.6°F), ±0.001 ℃ /10min at 35 ℃ (95°F) - Temperature Uniformity: ±0.001 ℃ at 2 ℃ (35.6°F), ±0.002 ℃ at 35 ℃ (95°F) - Heating Time: 60 minutes from 25°C(77°F) to 40°C(104°F) - Cooling Time: 120 minutes from 25°C(77°F) to 5°C(41°F) - Operating Voltage: 220VAC±10% ， 60Hz (Customizable Technical Specifications) - Rated Power: Approximately 4500W - Dimensions: 676mm (26.6") x 740mm (29.1") x 892mm (35.1") - Net Weight: Approximately 120 kg (264.6 lb) Key Features / Technical Specifications: - Model: AT-5100 - Seawater bath for calibration and value transfer of ocean environment sensors - Titanium alloy wetted parts - Workspace: Diameter 550 mm, Depth 380 mm - Liquid volume: ~100 liters - Jet stirring, three-speed adjustable - Fully digital PID temperature control - Display resolution: 0.001 ℃ - Temperature stability: ±0.0005 ℃ /10min at 2 ℃, ±0.001 ℃ /10min at 35 ℃ - Temperature uniformity: ±0.001 ℃ at 2 ℃, ±0.002 ℃ at 35 ℃ - Heating time: 60 min (25°C to 40°C) - Cooling time: 120 min (25°C to 5°C) - Operating voltage: 220VAC±10%, 60Hz - Rated power: ~4500W - Dimensions: 676mm x 740mm x 892mm - Net weight: ~120 kg
