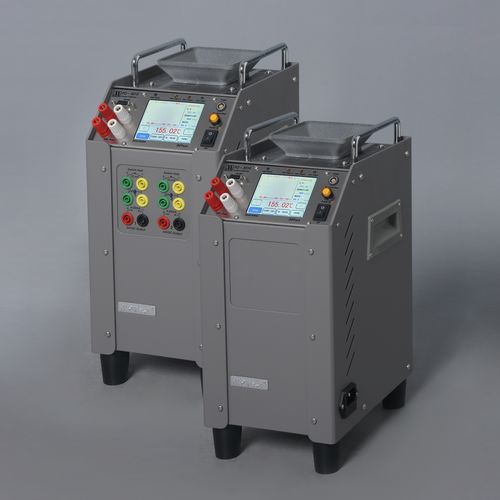

Dry-block calibrator PD-3010

portableprogrammablefully-automatic

The PD-3010 is a versatile dry-well temperature calibrator. It utilizes semiconductor (Peltier) cooling technology to achieve a temperature range from -25°C to 155°C. The unit features a cylindrical heating block with a diameter of 30 mm (1.18 inches) and a well depth of 200 mm (7.87 inches). A variety of heat transfer sleeves are available for user selection. It provides a temperature stability of ±0.02°C per 10 minutes, with parameters displayed on a color touchscreen that also supports multi-segment programmable temperature control. Additionally, a dual-channel electrical measurement module is available as an optional accessory. The calibrator comes complete with a protective carrying case. - Range (at 23°C ambient): -15°C to 155°C (5°F to 311°F) - Working Area: Diameter 30mm (1.2"), Depth 200mm (7.9") - Casing Material: Aluminum - Temperature Control Method: Fully digital PID control - Display Resolution: 0.01°C - Display accuracy: ±0.3°C full range - Temperature Stability: ±0.02°C /10min full range - Inter-hole ΔT: ≤ 0.02°C - Axial uniformity: ±0.03°C at -10°C(14°F), ±0.02°C at 0°C(32°F), ±0.1°C at 150°C(302°F) - Heating Time: 25 minutes from 25°C(77°F) to 100°C(212°F) - Cooling Time: 15 minutes from 25°C(77°F) to 0°C(32°F) - Stabilization Time: 8~10 minutes - Operating Voltage: 110VAC±10%, 60Hz (Customizable Technical Specifications) - Rated Power: Approximately 160W - Dimensions: 170mm (6.7") x 230mm (9.1") x 350mm (13.8") - Net Weight: Approximately 12 kg (26.5 lb)
