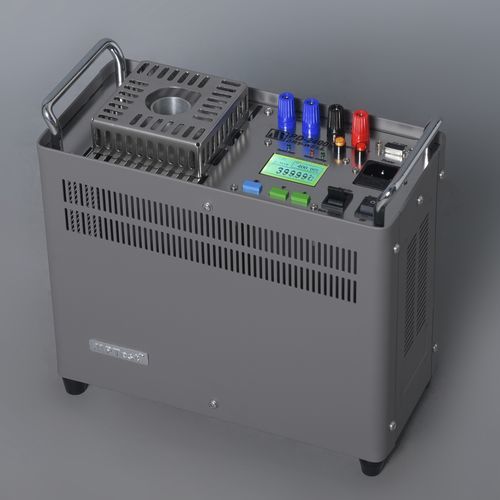

Temperature calibrator PD-2400

portablecompactdry-block

The PD-2400 is a compact, portable, and economical dry-well temperature calibrator designed for medium-temperature applications. The unit features a conical heating block and heat transfer sleeves, which provide excellent thermal conductivity while effectively preventing foreign object jamming. It can be powered by a 24V lead-acid battery and comes standard with a portable carrying case. With a sales history spanning over 20 years, its reliability has been thoroughly proven through long-term use. The calibrator offers a temperature range from 50°C (122°F) to 400°C (752°F), temperature stability of ±0.02°C per 10 minutes, and a well depth of 160 mm (6.30 inches). Customized heat transfer sleeves can be machined to accommodate specific thermometer diameters. - Range (at 23°C ambient): 50 ℃ to 400 ℃ (122°F to 752°F) - Working Area: Conical Structure: Diameter 16mm (0.63"), Depth 160mm (6.3") - Casing Material: Aluminum - Temperature Control Method: Fully digital PID control - Display Resolution: 0.01 ℃ - Display accuracy: ±0.2 ℃ full range - Temperature Stability: ±0.03 ℃ /10min full range - Axial uniformity: ±0.05°C at 100°C(212°F), ±0.1°C at 400°C(752°F) - Heating Time: 30 minutes from 25°C(77°F) to 400°C(752°F) - Cooling Time: 30 minutes from 400°C(752°F) to 50°C(122°F) - Stabilization Time: 8~10 minutes - Operating Voltage: 110VAC±10%, 60Hz or 12V, 7AH(Lead-Acid Battery) - Rated Power: Approximately 330W - Dimensions: 268mm (10.6") x 125mm (4.9") x 256mm (10.1") - Net Weight: Approximately 7.5 kg (16.5 lb)
