Simulator for laboratory applications WYSIWYC®

industrialCAD/CAMoperator training

Overview
WYSIWYC® | What you see is what you cut — real-time synchronized simulation with CNC machines. Change the way workshop personnel interact with CNC assets by providing synchronized, live 3D visualization of machining state and clear, immediate indications of required actions for operators and supervisors.

Product summary
NCSIMUL's WYSIWYC® aligns with the SPRING NCEXPERIENCE® ecosystem to deliver a workshop-focused user experience. It provides a real-time 3D machining simulation synchronized with actual machining, an interface optimized for shop-floor use, and a mobile implementation on rugged tablet PCs for on-site supervision.

Remote synchronization

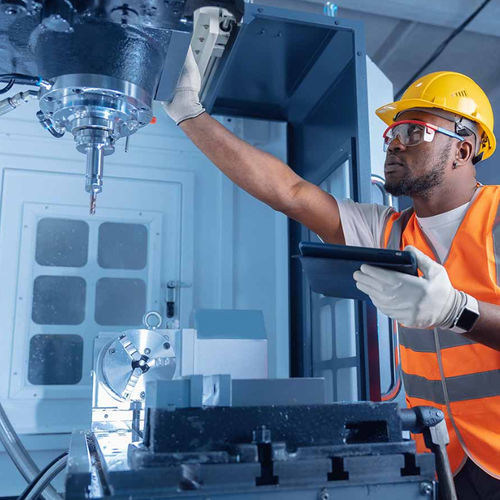

WYSIWYC® is a fully mobile solution that synchronizes CNC simulation and work instruction sheets with machine tools. Deployed on rugged tablet PCs (for example Panasonic Toughpad), it enables simultaneous, real-time supervision of multiple CNC machines and gives operators an instant view of machine status and required interventions.

Overcoming obstacles
Operators and floor managers face production flow pressures, downtime reduction targets, and legacy PC constraints that limit access to modern tools and hamper recruitment of younger operators. WYSIWYC® addresses these challenges by providing intuitive, mobile supervision that reduces setup time and supports operator decision-making.

Key benefits

• Up to +25% shop-floor productivity
• Immediate access to information: approximately 2 hours saved per operator and per program
• Fewer operator errors and faster decision-making
• Simple multi-machine supervision and full shop-floor mobility
• Supports recruitment and retention of younger operators through modern mobile tooling
• Facilitates training: shifts CNC programming learning toward virtual environments and lowers hardware investment

Product capabilities

• Real-time 3D machining simulation synchronized with live machine state
• Mobile deployment on rugged tablet PCs for shop-floor mobility
• Simultaneous supervision of multiple CNC machine tools
• Synchronization of CNC simulation with work instruction sheets
• User interface designed for workshop use with emphasis on rapid, actionable information

Target users / use cases

• CNC operators requiring real-time visual feedback on machining
• Shop-floor managers monitoring machine fleets and reducing downtime
• Training centres and educational programs teaching NC programming via virtual environments

Technical characteristics / specifications

• Type: Real-time CNC machining simulation and supervision solution
• Deployment: Mobile (rugged tablet PC) with multi-machine supervision
• Synchronization: Live sync between virtual 3D simulation and the real CNC machining process
• Primary benefits: Up to +25% shop-floor productivity, ~2 hours saved per operator per program, reduced errors
• Integration: Designed to integrate with SPRING NCEXPERIENCE® ecosystem and existing manufacturing workflows
