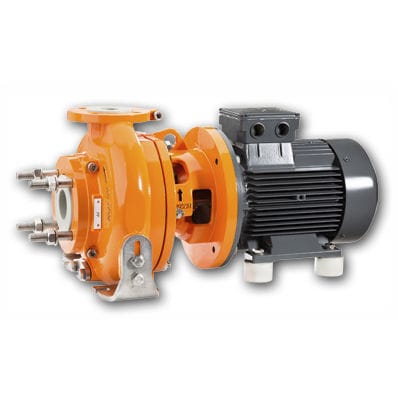

Chemical pump CS-B series
electriccentrifugalindustrial

chemical pump
chemical pump
Add to favorites
Compare this product


Characteristics

Media
for chemicals
Operation
electric
Technology
centrifugal
Domain
industrial
Applications
chemical process, service
Material
PFA, PVDF, PP
Other characteristics
close-coupled, mechanical, corrosion-resistant, seal
Flow

90 m³/h (3,178.32 ft³/h)

Pressure

16 bar (232.06 psi)

Head

60 m (196'10")

Power

18.5 kW (25.15 hp)

Description

The armoured pumps of the CS-B series are designed to meet chemical process industry standards and are ideally suited to pumping chemicals and solvents manufactured in back pull-out design. The MUNSCH REA mechanical seal, specifically developed for non-metallic pumps, ensures maximum operating reliability and a long service life while being easy to assemble and repair Materials: The chemical pumps are available in PP, PVDF as well as in corrosion-resistant PFA for universal fluid compatibility. Performance data Pump capacity: - up to 90 m³/h Total differential head: - up to 60 m Operating temperature [t]: - -20°C bis +180 °C Operating pressure [p]: - up to 16 bar Solids content: - up to 5 Vol.-% Particle size: - up to 5 mm Diameter of discharge nozzle: - DN 25 up to DN 65 Drive rating [P]: - up to 18,5 kW Applications The CS-series pumps are the solution of choice for the safe pumping of fluids posing an environmental or health hazard such as acids, alkalis, solvents and chemically contaminated fluids in the presence or absence of solids. Typical applications include the chemical and pharmaceutical industries, electrolysis plants, electroplating plants, the metallurgical and metal finishing industries. . more Information / Application Construction Close-coupled chemical pump design with dimensions to EN 22858/ISO 2858; Complemented by Size 40-25-125 and 40-25-160 Mechanical seals The main construction material of the mechanical seal is silicon carbide. No other material offers better corrosion and wear resistance.
