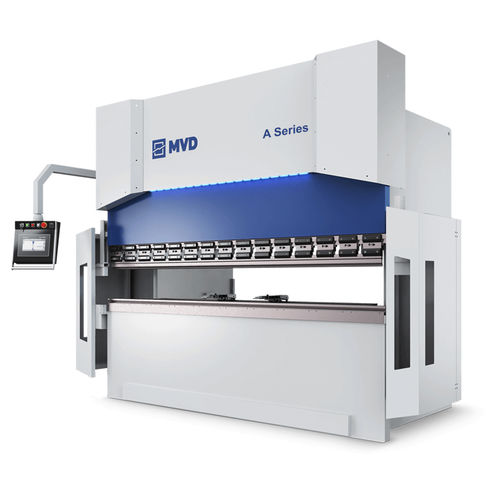

Hydraulic press brake A series

CNC4-axisprecision

Maximum machine performance and high bending accuracy provided by synchronized Hydraulic Cylinders, CNC-controlled, assembly in ideal conditions made the original Germany hydraulic block, Proportional Valves, high quality linear scales. Standard Features • Y1, Y2, X CNC 3 Axes • 210 mm Stroke, 410 mm Throat Depth • ESA S530 CNC Control Unit • ± 0,03 accuracy A/C motorized with inverter, back gauge. • Manual Promecam punch tool holder • MVD special narrow bottom table (European type) • Standard punch tools (H: 67, 85°, R:08) • Standard die tools (60x60 mm, 4 Vee V=16-22-35-50 mm, 85°, H:60) • High quality and precision linear scales • LED illumination on RAM Optional Features • R axis back gauge • Sliding front sheet support arms • Wide bottom table for Multi Vee dies. • Anti-deflection crowning with original Wila wedges • AKAS or DSP front laser safety systems • Additional back gauge fingers • Front laser safety BACK GAUGE OPTIONS • 0,03 mm accuracy • High speed • Strong structure • Linear scales • Ball bearing system without backlash • 3 step fingers with micrometric adjustment • Robust design againts hard impacts
