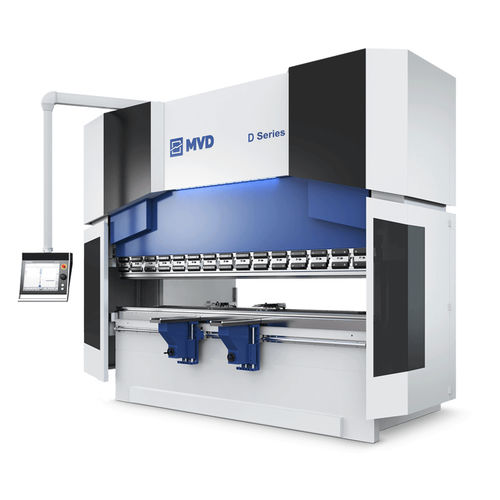

Hydraulic press brake D series

CNC4-axis

Top of the class, advanced CNC controllers and equipped to handle most complex jobs. 410 mm Stoke and 510 mm throat depth can do a lot more than other. Standard Features • Y1, Y2, X, R CNC 4 Axes (X + R Servo) • 410 mm Stroke, 510 mm Throat Depth • ESA S650 CNC Control Unit • ±0,03 accuracy SERVO motorized back gauge. X=750 mm, R=250 mm • Quick clamp Promecam punch tool holder • Sliding front sheet support arms with hand Wheel • Motorized Anti-deflection crowning with original Wila wedges • MVD special narrow bottom table (European type) • GIVI optic linear scales • Standard punch tools (H: 67, 85°, R:08) • Standard die tools (60x60 mm, 4 Vee V=16-22-35-50 mm, 85°, H:60) • LED illumination on RAM Optional Features • X + R to 4-6-8 axis back gauge options • Rolleri Rol200 hydraulic punch clamping • Wila hydraulic punch clamping • Wide bottom table for Multi Vee dies • 1.000 mm X axis travel • AKAS or DSP front laser safety systems • Additional back gauge fingers • Front laser safety BACK GAUGE OPTIONS • 0,03 mm accuracy • High speed • Strong structure • Linear scales • Ball bearing system without backlash • 3 step fingers with micrometric adjustment • Robust design againts hard impacts
