Rectangular magnetic chuck PMCA

for grinding

Product description

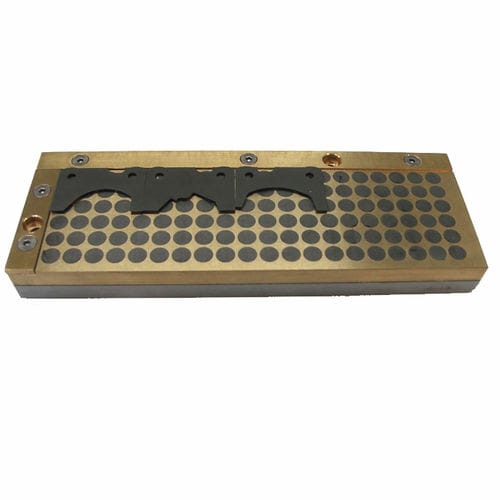

The PMCA fixed open-field magnetic chuck is designed to hold hard-metal (HM) inserts used in woodworking for secure positioning during re-grinding. Inserts are placed directly above strong permanent magnets, ensuring firm retention even for small workpieces. The unit is compatible with most straight-knife grinding and surface grinding machines and can be mounted magnetically or fixed mechanically.

Technical features

• Fixed open-field design for direct placement of hard-metal inserts
• High magnetic holding force suitable for small workpieces
• Can be secured onto existing magnetic chucks
• Mechanical mounting via fixing holes on the edges

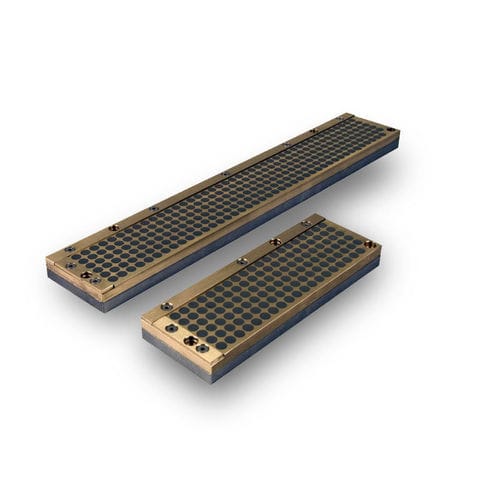

Available on request

• 200 x 70 x 20 mm
• 400 x 70 x 20 mm
• 600 x 70 x 20 mm
• Other sizes available on request

Technical specifications

• Model: PMCA
• Type: fixed open-field magnetic chuck (permanent magnets)
• Application: holding/re-grinding hard-metal (Widia/HM) inserts for woodworking
• Magnetic force: very high (permanent magnets)
• Suitable for: straight-knife grinding machines and surface grinders
• Mounting: magnetic attachment to standard chucks or mechanical fixation via edge holes
• Standard sizes: 200 x 70 x 20 mm; 400 x 70 x 20 mm; 600 x 70 x 20 mm; other sizes on request
