Mechanical clamping unit

for grinding

Product overview

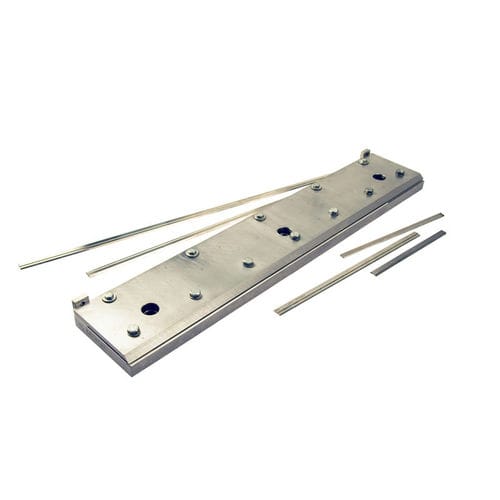

Mechanical clamping device for re-grinding disposable blades on industrial grinding machines. Each fixture is precision machined to hold a specific blade type and to ensure the correct bevel during re-grinding.

Supported blade types

• Tersa
• Centrofix
• Terminus
• Sinus
• Weinig
• Kanefusa

Design and functionality
The fixtures are ground on all faces to match the blade geometry. A dedicated locking system enables quick, repeatable mounting and removal on compatible grinding machines. Achievable parallelism between blade centring and cutting edge: 0.02 mm/m.

Technical specifications

• Application: re-grinding of disposable blades
• Compatibility: designed for installation on MVM production grinding machines
• Manufacturing: precision machined and ground on all faces
• Locking: dedicated locking system for quick mounting/removal
• Precision: parallelism between blade centring and cutting edge = 0.02 mm/m
• Supported blade types: Tersa, Centrofix, Terminus, Sinus, Weinig, Kanefusa
