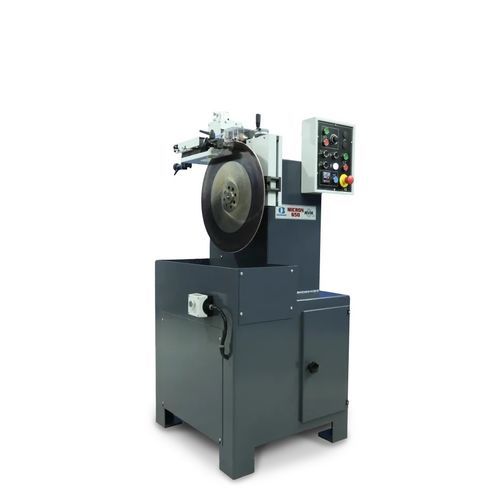

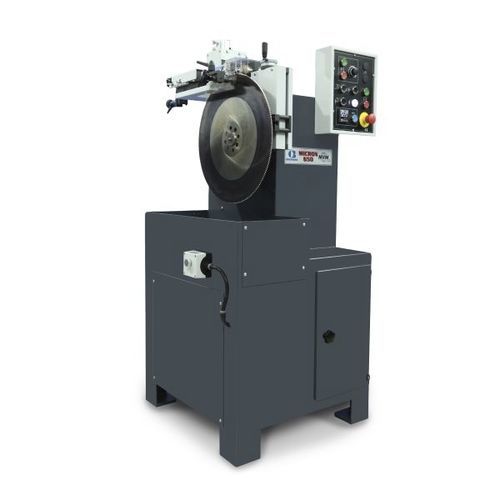

PLC-controlled sharpening machine MICRON 650

circular saw bladefor HSS circular saw bladesautomatic

The MICRON 650 sharpening machine is equipped with PLC control and stands out for its ease of use: it can be programmed and operated even by operators without particular experience. Adjustments are made using simple and precise mechanical controls and a control panel that allows all operating phases to be performed sequentially and intuitively. Designed for the production of chip-breaking teeth, ideal for cutting pipes, this type of sharpening ensures greater feed speed, longer circular blade life, and better cut finish quality. The work cycle is fully automatic and is carried out in a single rotation of the circular saw, with an automatic stop at the end of the operation, ensuring precision and reducing manual intervention. The grinding wheel's electric spindle is pressurised and controlled by an inverter. This technology allows the rotation speed to be varied electronically, optimising the performance of the grinding wheel according to its diameter and ensuring maximum machining efficiency. Technical features Grinding of chip breaker slots completed in a single pass Grinding of chip breakers slots of circular saw blades with variable tooth pitch Quick set-up times and very ease of use Cross traverse and depth of slots established using precise mechanical adjustments High frequency pressurized electrospindle with totally adjustable electronic speed, for the best performance of the grinding wheels Automatic shutdown on completion of operation Very low air consumption Simple maintenance Upon request Coolant system Clamping fixture for circular saw blades from 70 to 140 mm diameter
