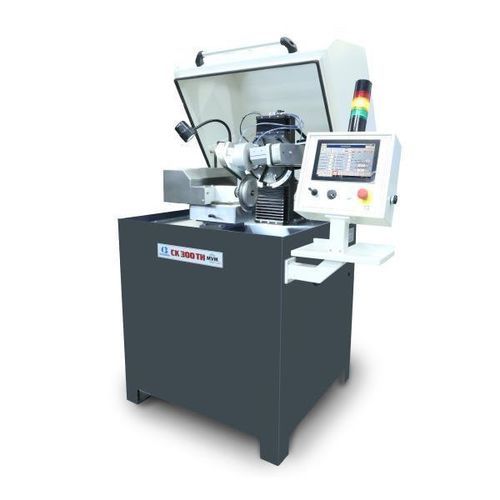

Circular knife sharpening machine CK 300 TH

PLC-controlledautomaticdouble-head

Product overview
The CK 300 TH is a sharpening machine for circular knives equipped with twin grinding heads that can machine bevels simultaneously on both sides of the knife, reducing cycle times and delivering a burr-free cutting edge. The machine also supports single-bevel sharpening when required.

Operation and materials
Grinding can be performed using emulsion coolant or neat oil, making the CK 300 TH suitable for knives made of carbon steel, stainless steel, HSS and solid carbide. The working area is fully enclosed to contain coolant and debris.

Control and monitoring
Parameters are managed via a Panel PC with touch screen and a menu-driven operator interface. The system enables batch sharpening to the same diameter with high repeatability. The operator can monitor spindle motor current, remaining machining time and total automatic cycle duration on the screen.

Remote support
On request the machine can be equipped with a remote assistance programme for specialized technical support and rapid remote diagnostics to reduce downtime.

Technical features

• Simultaneous grinding of both bevels for burr-free finish
• Capability to grind single bevels
• Working area fully enclosed in a cabinet
• Grinding with emulsion or neat oil coolant
• PLC machine control
• Electronically controlled variable knife rotation speed
• Compatible with abrasive, CBN and diamond wheels
• Easy adjustment of bevel angle
• Lateral fine adjustment for centering the cutting edge
• Quick assembly/disassembly of circular knife
• Manual centralized lubrication
• Adjustable halogen target light for work area illumination
• Designed for easy operation and low routine maintenance

Upon request

• Various types of coolant and filtration systems
• Various types of mist extraction units
• Automatic centralized lubrication with programmable electric pump

Technical specifications

• Model: CK 300 TH
• Double grinding head for simultaneous bevel machining on both sides
• Single bevel sharpening capability
• Coolant: emulsion or neat oil
• Suitable materials: carbon steel, stainless steel, HSS, solid carbide
• Panel PC with touch screen and menu-driven interface
• Monitoring: spindle motor current, remaining machining time, total automatic cycle time
• PLC machine control
• Electronically controlled variable knife rotation speed
• Compatibility with abrasive, CBN and diamond wheels
• Adjustable bevel angle and lateral fine adjustment
• Quick knife assembly and manual centralized lubrication
• Adjustable halogen target light
• Optional remote assistance and optional coolant/filtration, mist extraction, automatic centralized lubrication with programmable pump
