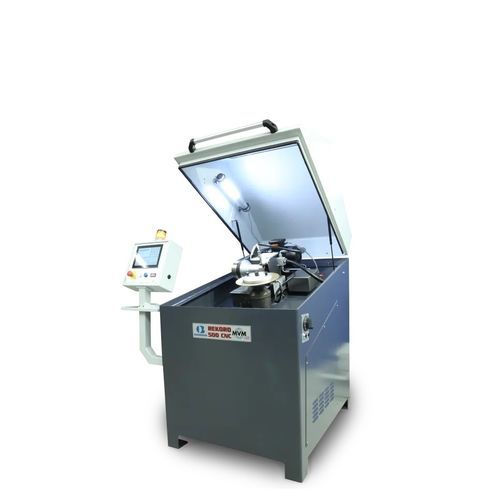

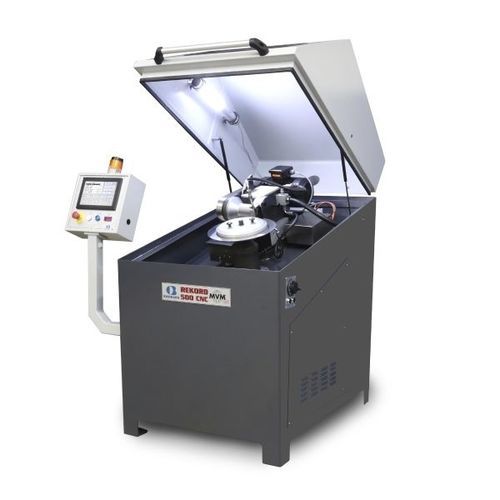

HSS circular saw blade sharpening machine REKORD 500

CNCCBNhigh-precision

The REKORD 500 CNC grinding machine uses CBN or diamond grinding wheels to ensure high surface quality and maximum precision, minimising machining times. The machine allows the use of both cooling lubricant emulsion and neat oil, depending on operational requirements. Thanks to its fully digital and intuitive programming, the grinding machine can also be used by operators with little experience. Data is entered via an easy-to-learn guided menu displayed on a large screen that assists the operator at every stage of the process. The tooth angles can be set freely and individually in order to obtain the tooth geometry best suited to the material to be cut. The geometry and profile of the tooth are calculated and programmed automatically by the CNC according to DIN standards, but can still be modified easily and immediately as required. The high-pressure lubrication and cooling system ensures optimal cooling during machining, while the automatic filtering and control systems keep the lubricant and coolant clean and efficient at all times, guaranteeing consistent performance over time. Technical features Working area fully enclosed in a cabinet High pressure coolant facility with filtering system Mist extraction unit Electronic handwheel for manual positioning of grinding slide High rigidity and accurate assembly of the circular saw blade with clamping flanges Quick adjustment for chamfering Automatic centralized lubrication with programmable electropump Fluorescent tube lamp for working area lighting SOFTWARE Sharpening and making new teeth forms A, AW, B, BW, C, according to DIN 1840 Chamfering of the tooth Saving of 99 entire working cycles
