TDS conductivity controller
750 Series II

Add to MyDirectIndustry favorites
Compare this product

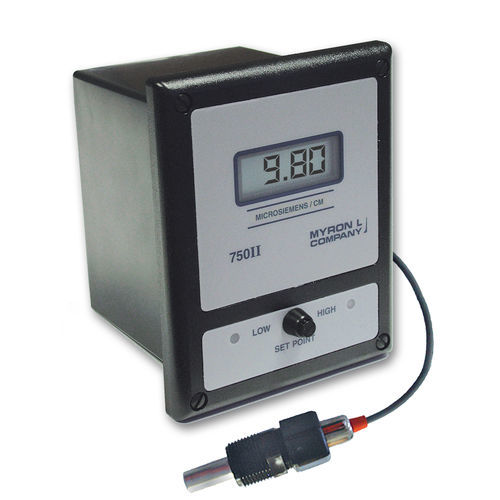

TDS conductivity controller TDS conductivity controller - 750 Series II
{{requestButtons}}

Characteristics

  • Type:

    TDS

Description

BENEFITS
•Affordable
•Ease of Operation
•Low Maintenance
•Ensures Product Quality

The unique circuitry of the 750 Series II Conductivity Monitor/controllers guarantees accurate and reliable measurements. Drift-free performance is assured by “field proven” electronics, including automatic DC offset compensation and highly accurate drive voltage.

Since temperature compensation is at the heart of accurate water measurement, all Myron L® Monitor/controllers feature a highly refined and precise TC circuit. This feature perfectly matches the water temperature coefficient as it changes. All models corrected to 25°C. The TC may be disabled to conform with USP requirements.

Built-in electronic calibration allows for fast quality checks without standard solutions. (Note: for maximum system accuracy standard solutions are recommended).

A push-to-test button makes setpoint checks easy, while the internal alarm set discourages unauthorized adjustments.

Standard on all controller models is a heavy-duty 10 amp output relay, operating on either increasing or decreasing readings. Bright green/red LEDs indicate above or below setpoint readings.

All 750 Series II models feature an IP65/ NEMA 4X water resistant and corrosion-proof rated enclosure. Compact in size at 152 x 122 mm/6 x 4.8 in., they are suitable for panel, bench or surface mounting.

Additional options include a 3 Sensor Input Switch and/or a 3 Range Switch and a Remote Alarm™ model RA.

Applications
•Reverse Osmosis
•Process Control
•Seawater Desalination
•Waste Treatment
•Food Processing
•Plating
•Power Plants
•Laboratories
•Printing
•Aquaculture
•Agriculture
•Environmental Studies
•Medical
